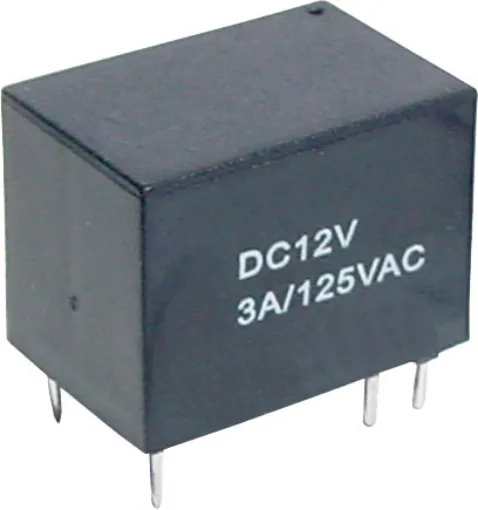

3A 12VDC SPDT PCB Mount Micro Relay

Be the first to review this product
Fully sealed construction (immersion cleanable).
SKU: S4140B
$3.64
Per ea
QuantityPrice
ea$3.64
10+$3.27
40+$2.91

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

3A SPDT micro relay. PCB mount style. 12V DC coil.
Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.

Specifications

Max Switching Voltage: 220V AC, 60V DC

  • Max Switching Current: 3A
  • Max VA (Watts): 625VA (90W)
  • Contact Material: Silver Nickel
  • Coil Resistance: 400Ω
  • Max Coil Power: 360mW
  • Insulation Resistance: >1000MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 500V AC between open contacts
  • 500V AC between coil & contact
  • Electrical Life:100,000 operations 3A 24V
  • Mechanical Life: 10 million operations
  • Dimensions:˜16W x 10L x 11H mm
