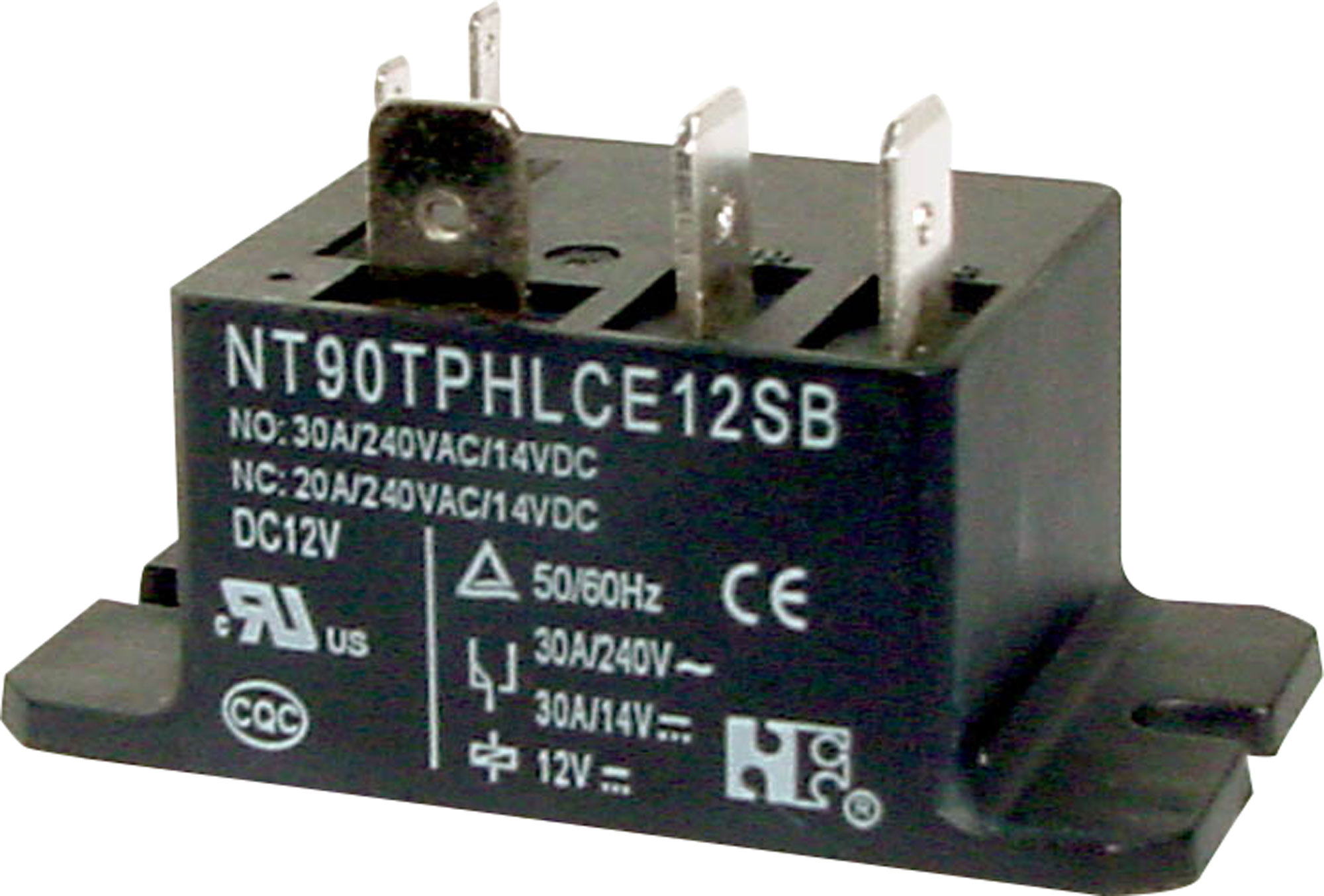

30A 12VDC SPDT Tag Connection Relay

Be the first to review this product
Max voltage:250V AC Max current:30A Max VA (Watts):7200VA (1100W) Contact material:Silver Nickel Alloy Coil resistance:160Ω Max coil power:2.5W Insulation resistance:>1000MΩ @ 500V DC Dielectric strength (for 1 min): 1500V AC between open contacts 2500V AC between coil & contact Electrical life:100,000 operations M
SKU: S4211
$8.36
Per ea
QuantityPrice
ea$8.36
10+$7.86
40+$7.36

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

30A SPDT relay. Tag connection style. 12V DC coil. 6.4mm spade terminals for NC, NO and Common connections. 2.7mm spade terminals for DC coil.

Specifications

Max Switching Voltage: 250V AC

  • Max Switching Current: 30A
  • Max VA (Watts): 7200VA (1100W)
  • Contact Material: Silver Nickel Alloy
  • Coil Resistance: 160Ω
  • Max Coil Power: 2.5W
  • Insulation Resistance: >1000MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 1500V AC between open contacts
  • 2500V AC between coil & contact
  • Electrical Life: 100,000 operations
  • Mechanical Life: 1 million operations
  • Dimensions: ˜50W x 27L x 20H mm (excluding terminals)

12 Months

We Offer 12 Months for this product
