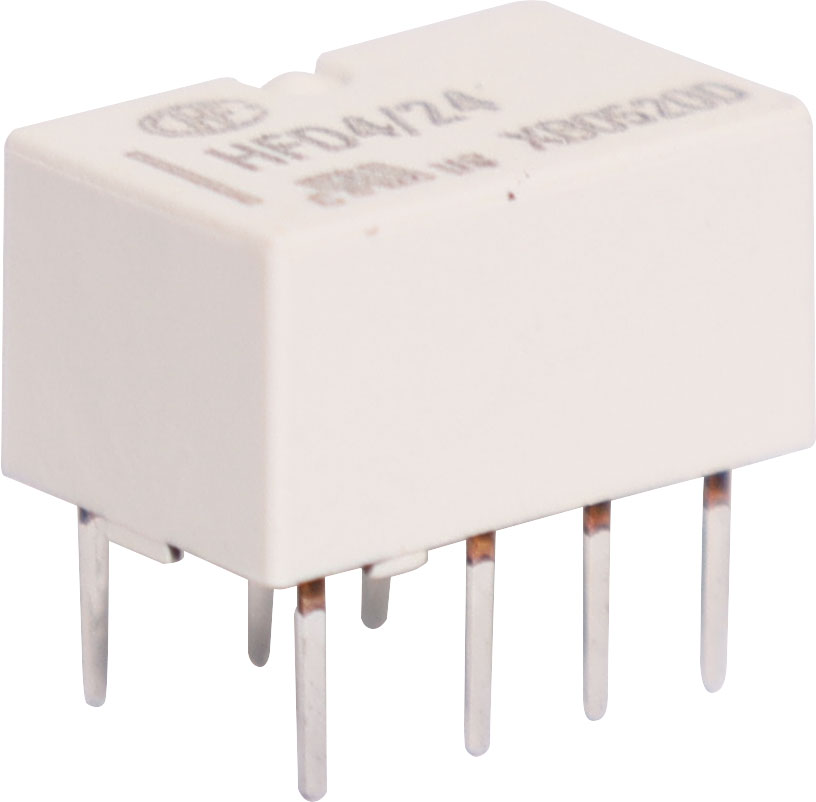

2A 24V DC Coil SPDT Sub Miniature Signal PCB Relay

SKU: S4158
Compact 2A SPDT signal relay. 24V DC coil. Fully sealed construction, makes it ideal for immersion cleaning and large scale manufacturing. Low power consumption. Surge withstanding up to 2500V.
$5.91

All Prices Shown are (ex GST)
Bulk Pricing
ea $5.91
10+ $5.32
40+ $4.73
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Compact 2A SPDT signal relay. 24V DC coil. Fully sealed construction, makes it ideal for immersion cleaning and large scale manufacturing. Low power consumption. Surge withstanding up to 2500V.

Specifications

Max AC switching rating: 2A @ 250V

  • Max DC switching rating: 2A @ 220V
  • Max switching power AC: 62.5VA
  • Max switching power DC: 60W
  • Contact material: Gold plated nickel
  • Coil resistance (5V): 2880Ω
  • Nominal coil power: 100mW
  • Insulation resistance: >1000MΩ @ 500V DC
  • Dielectric strength (for 1 min):
  • 1000V AC between open contacts
  • 1600V AC between coil & contact
  • Life: 100,000 electrical 1A 24V,  10 million mechanical
  • Dimensions: ˜10W x 6.5L x 5.4H mm
  • Sealed construction (immersion cleanable)

Warranty & Returns

12 Months

We Offer 12 Months for this product
