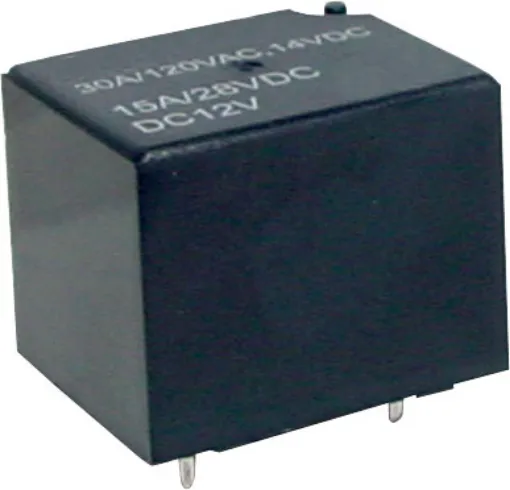

30A 12VDC SPDT PCB Mount Relay

SKU: S4206A
Max voltage:380V AC, 75V DC Max current:30A Max VA (Watts):2400VA (360W) Contact material:Silver Nickel Coil resistance (12V):90 Ohm Max coil power:1.6W Insulation resistance:>100M Ohm @ 500V DC Dielectric strength (for 1 min): 1000V AC between open contacts 5000V AC between coil & contact Electrical life:100,000 operations Mechanical li
$5.45

All Prices Shown are (ex GST)
Bulk Pricing
ea $5.45
10+ $4.91
40+ $4.32
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Max switching voltage: 380V AC, 75V DC
Max switching current: 30A
Max VA (Watts): 2400VA (360W)
Contact material: Silver Nickel
Coil resistance (12V): 90Ω
Max coil power: 1.6W
Insulation resistance: >100MΩ @ 500V DC
Dielectric strength (for 1 min):
1000V AC between open contacts
5000V AC between coil & contact
Electrical life: 100,000 operations
Mechanical life: 10 million operations
Dimensions: ˜25W x 20L x 20H mm

Fully sealed construction (immersion cleanable).

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
