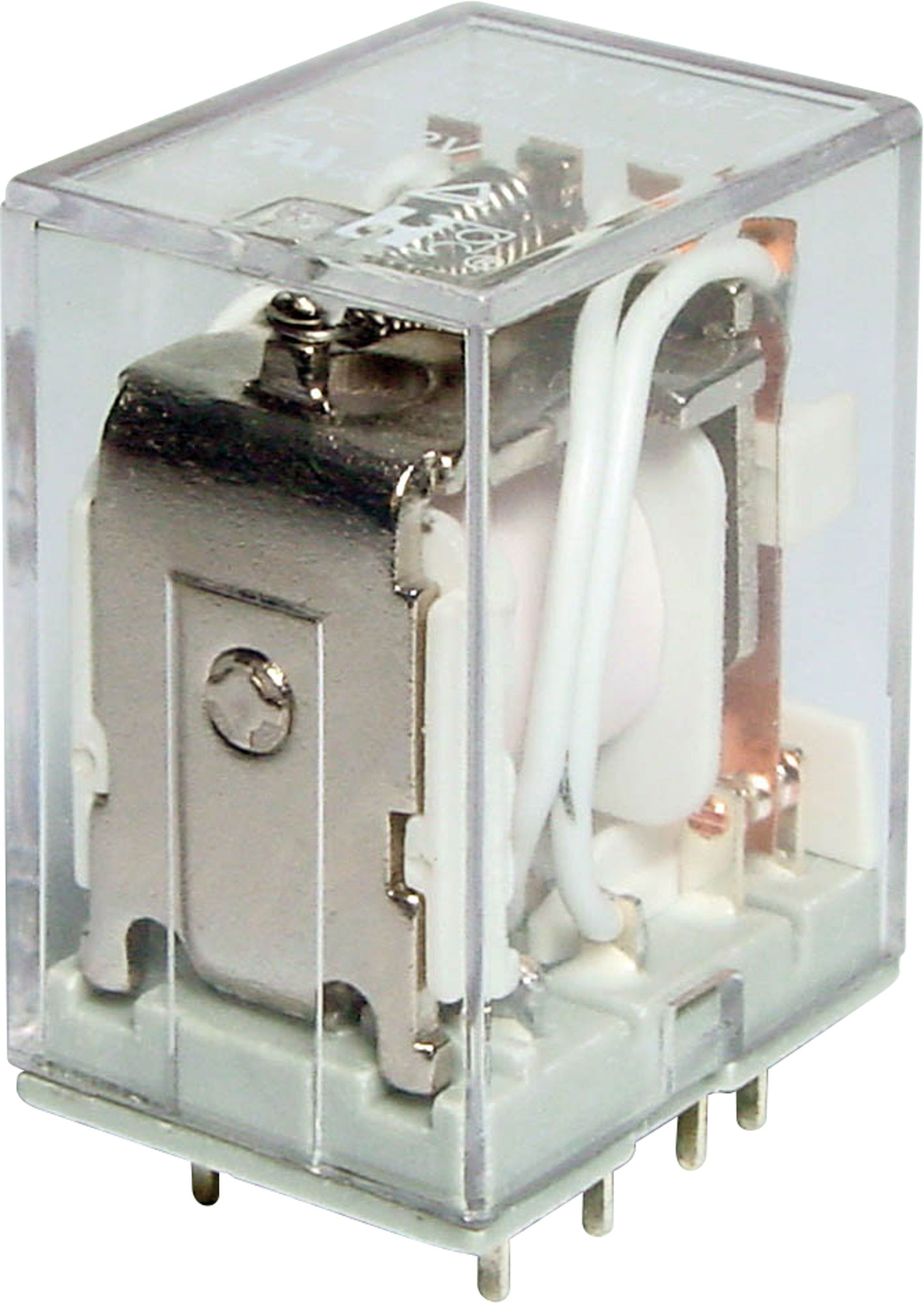

5A 12VDC 4PDT PCB Mount Relay

SKU: S4290
Max voltage:150V DC, 380V AC Max current: 7A Max VA (Watts): 2500VA, 1250W Contact material: Silver Cadmium Oxide Coil resistance: 160Ω Max coil power: 0.9W Insulation resistance: >1000MΩ @ 500V DC Dielectric strength (for 1 min): 1000V AC between open contacts 1500V AC between coil & contact Electrical life: 200,000 operations
$8.32

All Prices Shown are (ex GST)
Bulk Pricing
ea $8.32
10+ $7.27
40+ $5.55
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

5A 4PDT relay. PCB mount style. 12V DC coil.

Specifications

Max Switching Voltage: 150V DC, 380V AC

  • Max Switching Current: 7A
  • Max VA (Watts): 2500VA, 1250W
  • Contact Material: Silver Cadmium Oxide
  • Coil Resistance: 160Ω
  • Max Coil Power: 0.9W
  • Insulation Resistance: >1000MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 1000V AC between open contacts
  • 1500V AC between coil & contact
  • Electrical Life: 200,000 operations
  • Mechanical Life: 10 million operations
  • Dimensions: 21.5W x 28L x 35H mm

Warranty & Returns

12 Months

We Offer 12 Months for this product
