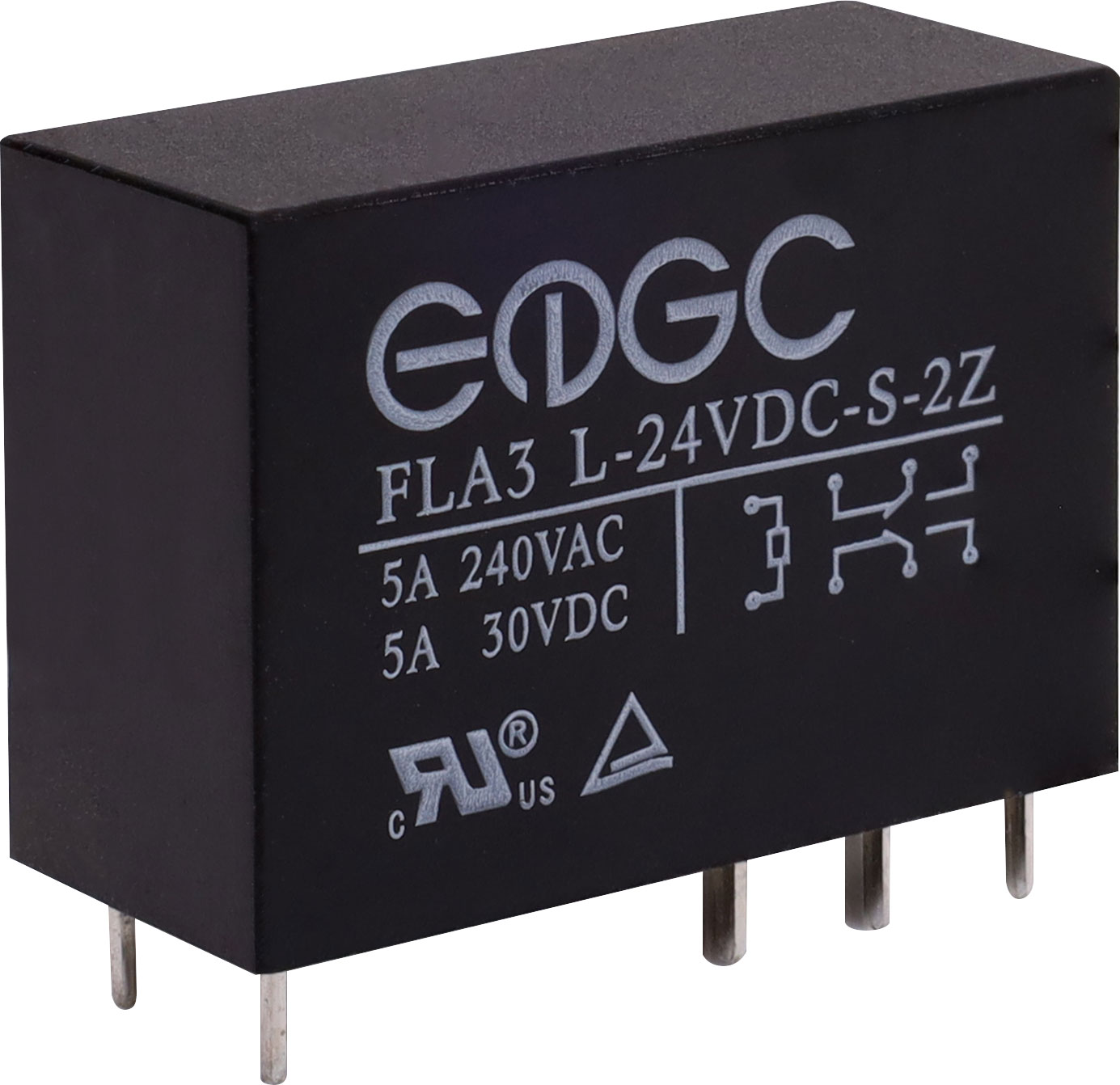

5A 24VDC DPDT PCB Mount Relay

SKU: S4195D
Note: This relay is marked with UL approved 5A 240VAC ratings, however max switching current specification is 8A 250VAC/30VDC
$7.86

All Prices Shown are (ex GST)
Bulk Pricing
ea $7.86
10+ $7.05
40+ $6.27
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

5A DPDT relay. PCB mount style. 24V DC coil.
Non-sealed type, suitable for flow soldering.

Specifications

Max Switching Voltage AC: 250V

  • Max Switching Voltage DC: 30V
  • Max Switching Current AC: 8A
  • Max Switching Current DC: 8A
  • Max Switching Power AC: 1250VA
  • Max Switching Power DC: 150W
  • Contact Material: Silver alloy
  • Coil Resistance: 1050Ω
  • Max Coil Power: 540mW
  • Insulation Resistance: >100MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 1000V AC between open contacts
  • 5000V AC between coil & contact
  • Electrical Life: 100,000 operations
  • Mechanical Life: 10 million operations
  • Dimensions: 29W x 12.7L x 20H mm

Warranty & Returns

12 Months

We Offer 12 Months for this product
