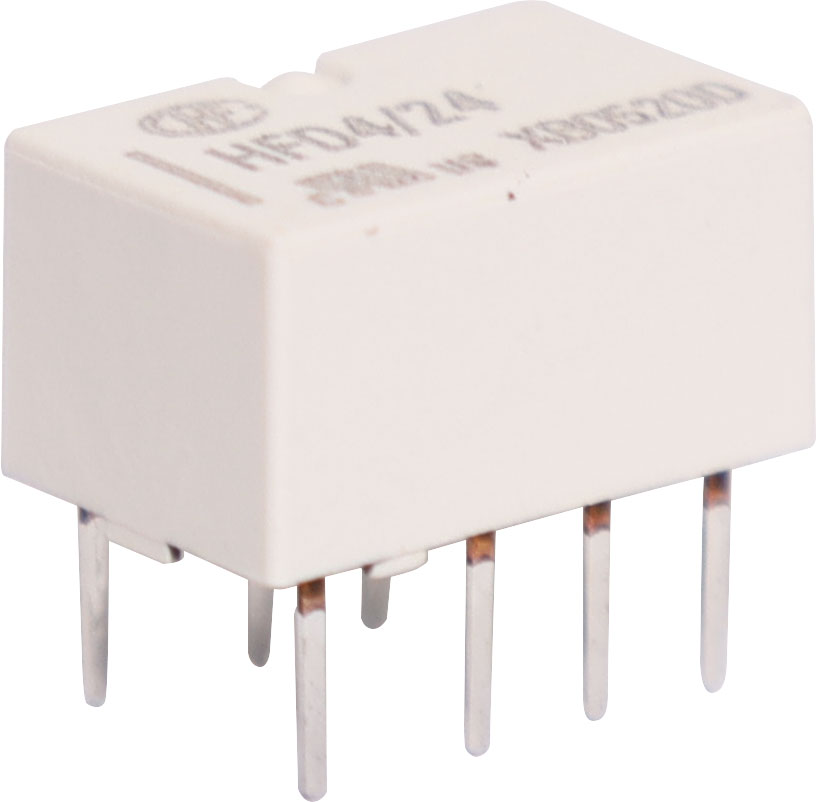

2A 12V DC Coil DPDT Sub Miniature Signal PCB Relay

Be the first to review this product
Compact 2A DPDT signal relay. 12V DC coil. Fully sealed construction, makes it ideal for immersion cleaning and large scale manufacturing. Low power consumption. Surge withstanding up to 2500V.
SKU: S4157
$5.45
Per ea
QuantityPrice
ea$5.45
10+$4.91
40+$4.32

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Compact 2A DPDT signal relay. 12V DC coil. Fully sealed construction, makes it ideal for immersion cleaning and large scale manufacturing. Low power consumption. Surge withstanding up to 2500V.

Specifications

Max AC switching rating: 2A @ 250V

  • Max DC switching rating: 2A @ 220V
  • Max switching power AC: 62.5VA
  • Max switching power DC: 60W
  • Contact material: Gold plated nickel
  • Coil resistance: 1028Ω
  • Nominal coil power: 100mW
  • Insulation resistance: >1000MΩ @ 500V DC
  • Dielectric strength (for 1 min):
  • 1000V AC between open contacts
  • 1600V AC between coil & contact
  • Life: 100,000 electrical 1A 24V, 10 million mechanical
  • Dimensions: ˜10W x 6.5L x 5.4H mm
  • Sealed construction (immersion cleanable)

12 Months

We Offer 12 Months for this product
