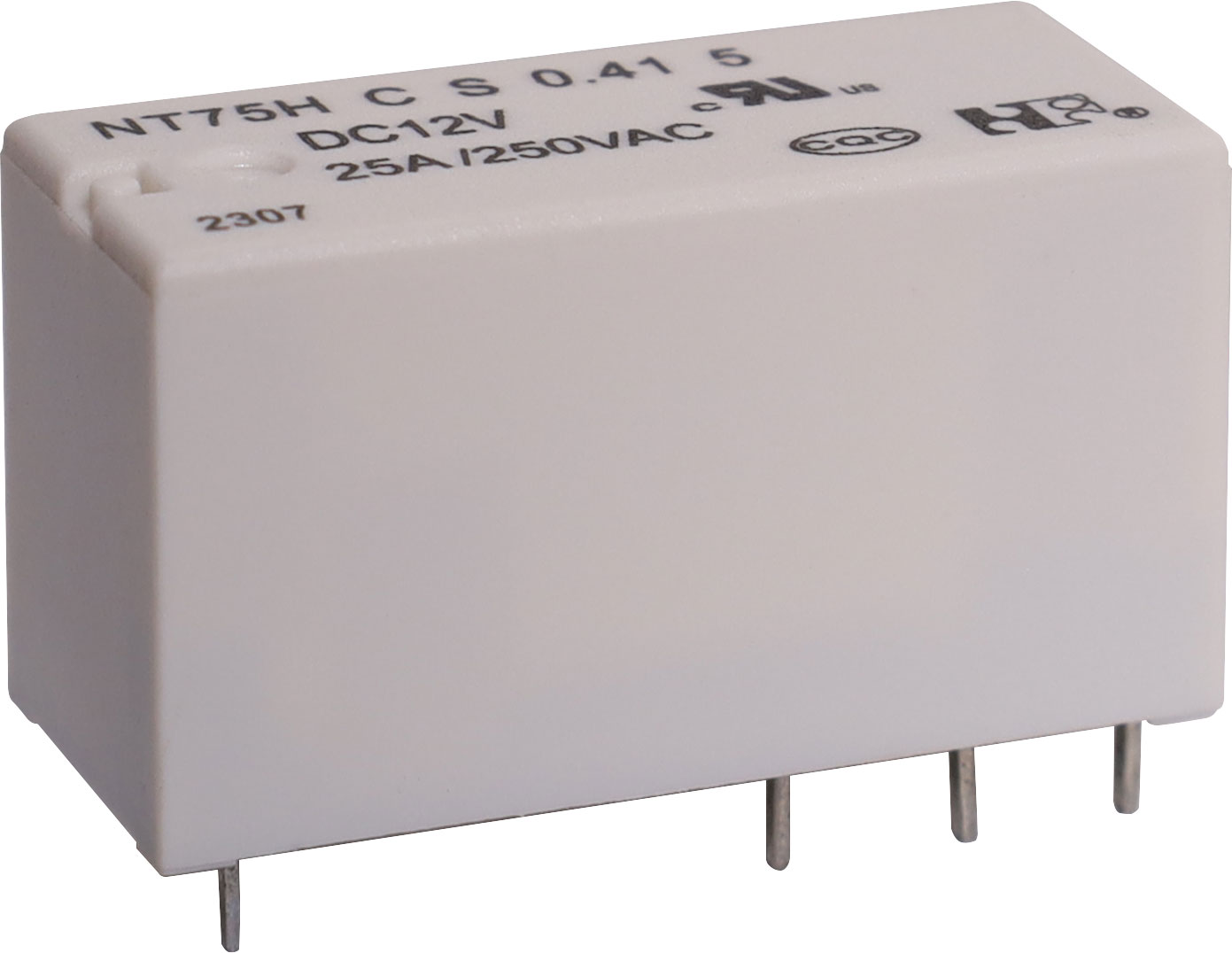

25A 12VDC SPDT PCB Relay

SKU: S4144
25A SPDT relay. PCB mount style. 12V DC coil. Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing
$6.32

All Prices Shown are (ex GST)
Bulk Pricing
ea $6.32
10+ $5.68
40+ $5.05
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

25A SPDT relay. PCB mount style. 12V DC coil.
Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing

Specifications

Max AC switching rating: 25A @ 250V

  • Max switching power AC: 6250VA
  • Contact material: Silver alloy
  • Coil resistance: 351Ω
  • Max coil power: 410mW
  • Insulation resistance: >1000MΩ @ 500V DC
  • Dielectric strength (for 1 min): 1000V AC between open contacts, 5000V AC between coil & contact
  • Electrical life: 80,000 operations
  • Mechanical life: 10 million operations
  • Dimensions: ˜29W x 12.7L x 16H mm
  • Sealed construction (immersion cleanable).
