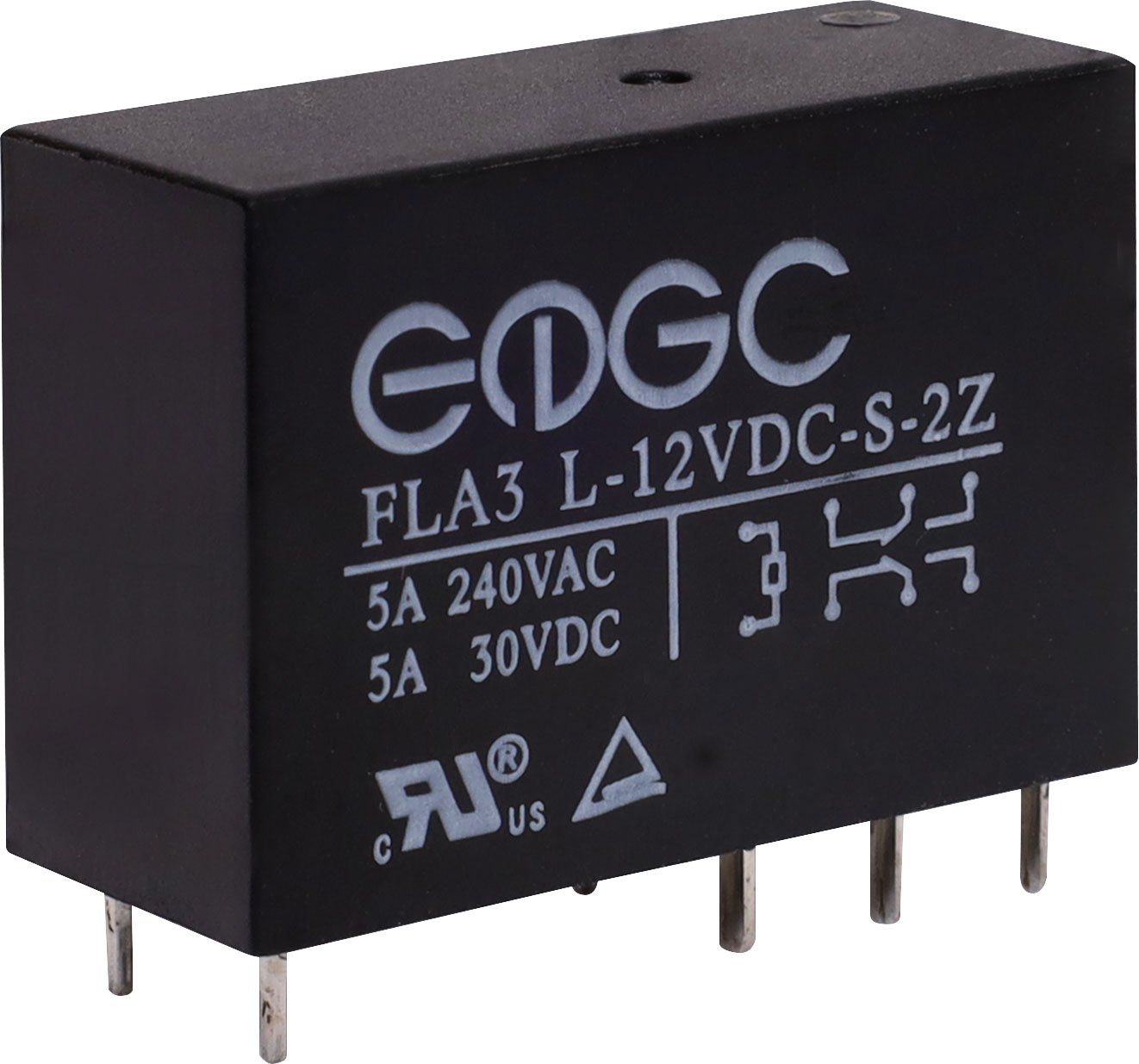

5A 12VDC DPDT PCB Mount Relay

Be the first to review this product
Note: This relay is marked with UL approved 5A 240VAC ratings, however max switching current specification is 8A 250VAC/30VDC
SKU: S4190D
$7.86
Per ea
QuantityPrice
ea$7.86
10+$7.05
40+$6.27

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

5A DPDT relay. PCB mount style. 12V DC coil.
Non-sealed type, suitable for flow soldering.

Specifications

Max Switching Voltage AC: 250V

  • Max Switching Voltage DC: 30V
  • Max Switching Current AC: 8A
  • Max Switching Current DC: 8A
  • Max Switching Power AC: 1250VA
  • Max Switching Power DC: 150W
  • Contact Material: Silver alloy
  • Coil Resistance: 270Ω
  • Max Coil Power: 540mW
  • Insulation Resistance: >100MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 1000V AC between open contacts
  • 5000V AC between coil & contact
  • Electrical Life: 100,000 operations
  • Mechanical Life: 10 million operations
  • Dimensions: 29W x 12.7L x 20H mm
