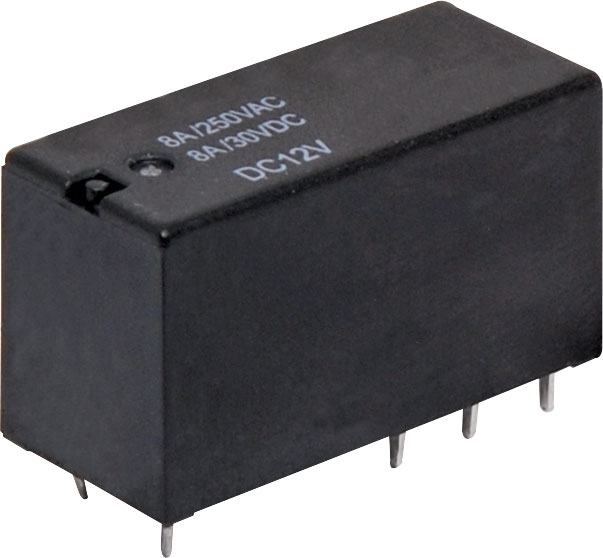

8A 12VDC DPDT PCB Mount Relay

Be the first to review this product
Non-sealed type, suitable for flow soldering
SKU: S4270A
$11.14
Per ea
QuantityPrice
ea$11.14
10+$9.95
40+$8.73

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

8A DPDT relay. PCB mount style. 12V DC coil.
Non-sealed type, suitable for flow soldering.

Specifications

Max Switching Voltage: 440V AC, 125V DC

  • Max Switching Current: 8A (total)
  • Max VA (Watts): 2800VA (240W)
  • Contact Material: Silver Alloy
  • Coil Resistance: 351Ω
  • Max Coil Power: 400mw
  • Insulation Resistance: >1000MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 1000V AC between open contacts
  • 5000V AC between coil & contact
  • Electrical Life: 100,000 operations
  • Mechanical Life: 10 million operations
  • Dimensions: ˜29W x 12.7L x 15.7H mm

12 Months

We Offer 12 Months for this product
