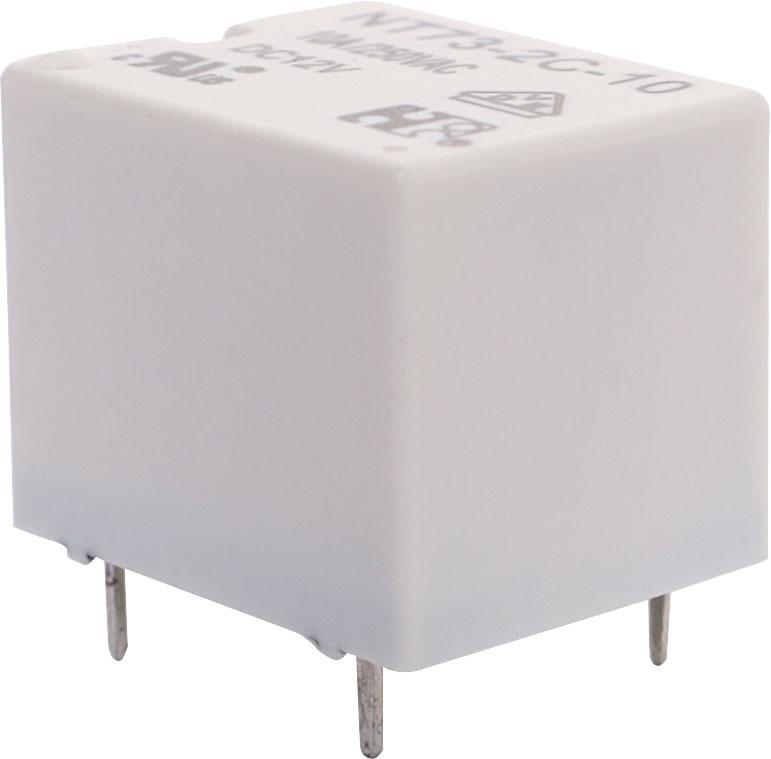

10A 12VDC SPDT PCB Mount Relay

Be the first to review this product
Non-sealed type, suitable for flow soldering
SKU: S4160C
$3.18
Per ea
QuantityPrice
ea$3.18
10+$2.86
40+$2.55

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Non-sealed type, suitable for flow soldering

Specifications:

Max switching voltage ac: 380V

  • Max switching voltage dc: 110V
  • Max switching current ac: 10A
  • Max switching current dc: 10A
  • Max switching power ac: 2500VA
  • Max switching power dc: 420W
  • Contact material: Silver alloy
  • Coil resistance (12V): 400Ω
  • Max coil power: 360mW
  • Insulation resistance: >250MΩ @ 500V dc
  • Dielectric strength (for 1 min):
  • 750V ac between open contacts
  • 1500V ac between coil & contact
  • Electrical life: 100,000 operations
  • Mechanical life: 10 million operations
  • Dimensions: ≈19.5W x 15.6L x 15.3H mm

12 Months

We Offer 12 Months for this product
