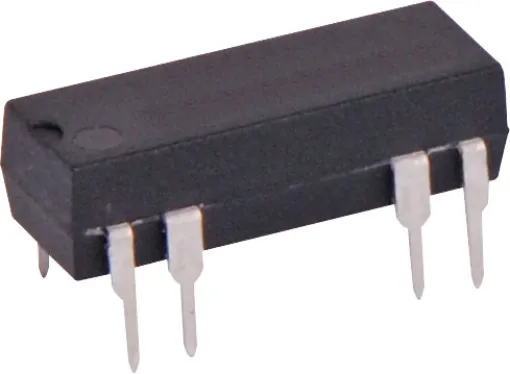

0.5A 5VDC SPST DIP PCB Mount Reed Relay

SKU: S4100A
Fully sealed construction (immersion cleanable). DIL pitch terminals.
$4.32

All Prices Shown are (ex GST)
Bulk Pricing
ea $4.32
10+ $3.77
25+ $3.41
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Fully sealed construction (immersion cleanable). DIL pitch terminals. PCB mount style.

Pinout

Specifications

Max Switching Voltage: 100V DC

  • Max Switching Current: 1A DC
  • Max VA (Watts): 10VA
  • Contact Material: Rhodium Alloy
  • Coil Resistance: 500Ω
  • Max Coil power: 500mw
  • Insulation resistance: >1000MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 150V AC between open contacts
  • 1000V AC between coil & contact
  • Electrical Life: 10 million operations
  • Mechanical Life: 10 million operations
  • Dimensions:˜20W x 8L x 6H mm

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
