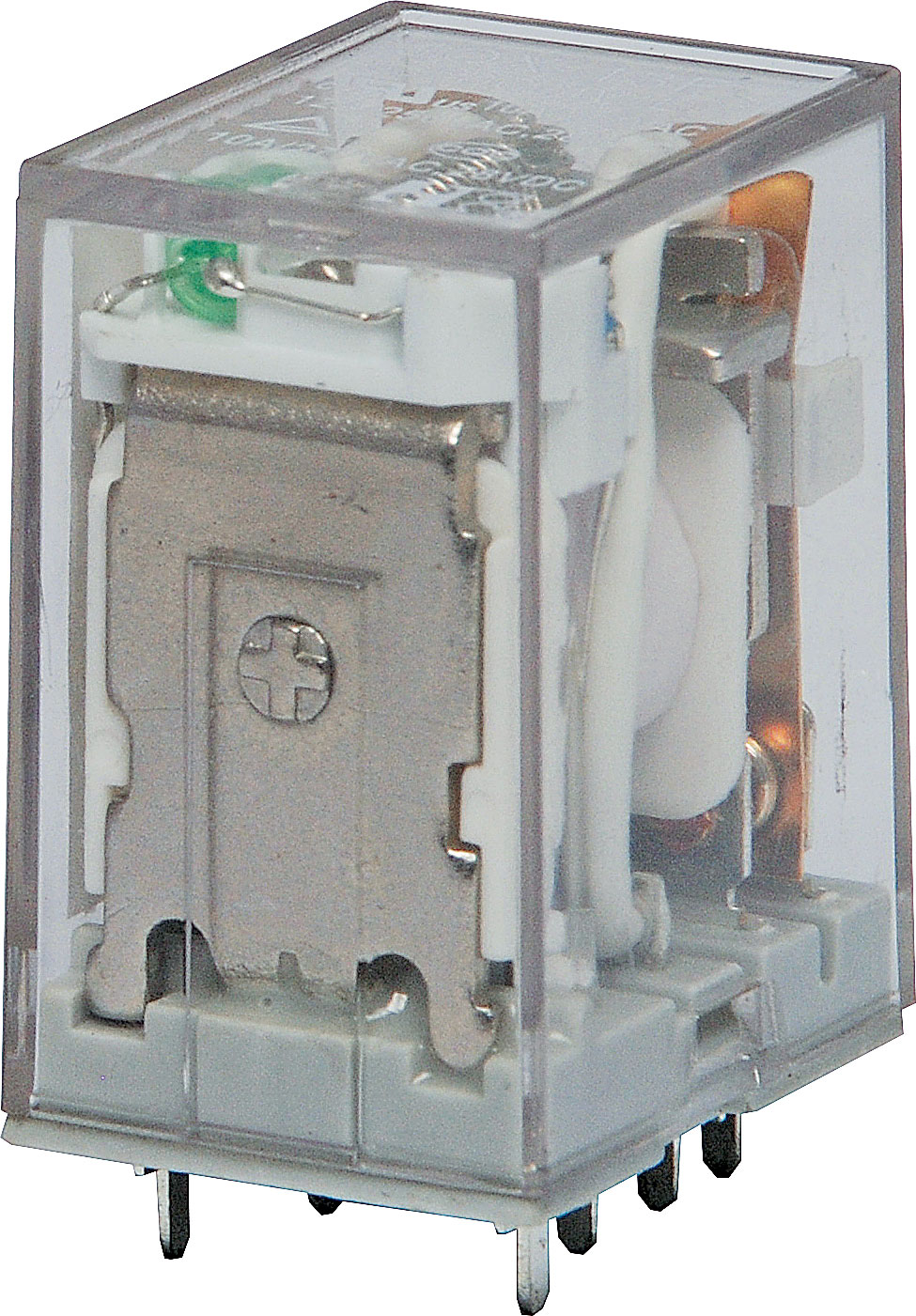

10A 12VDC DPDT PCB Mount Relay

SKU: S4311
Max voltage: 300V AC, 30V DC Max current: 20A (total) Max VA (Watts): 280VA (280W) Contact material: Silver Cadmium Oxide Coil resistance: 160Ω Max coil power: 900mW Insulation resistance: >1000MO@ 500V DC Dielectric strength (for 1 min): 1000V AC between open contacts 1500V AC between coil & contact Electrical life: 100,000 operatio
$8.32

All Prices Shown are (ex GST)
Bulk Pricing
ea $8.32
10+ $7.27
40+ $6.23
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

10A DPDT relay. PCB mount style featuring an in-build indicator. 12V DC coil.

Specifications

Max Switching Voltage: 300V AC, 30V DC

  • Max Switching Current: 20A (total)
  • Max VA (Watts): 280VA (280W)
  • Contact Material: Silver Cadmium Oxide
  • Coil Resistance: 160Ω
  • Max Coil Power: 900mW
  • Insulation Resistance: >1000MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 1000V AC between open contacts
  • 1500V AC between coil & contact
  • Electrical Life: 100,000 operations
  • Mechanical Life: 20 million operations
