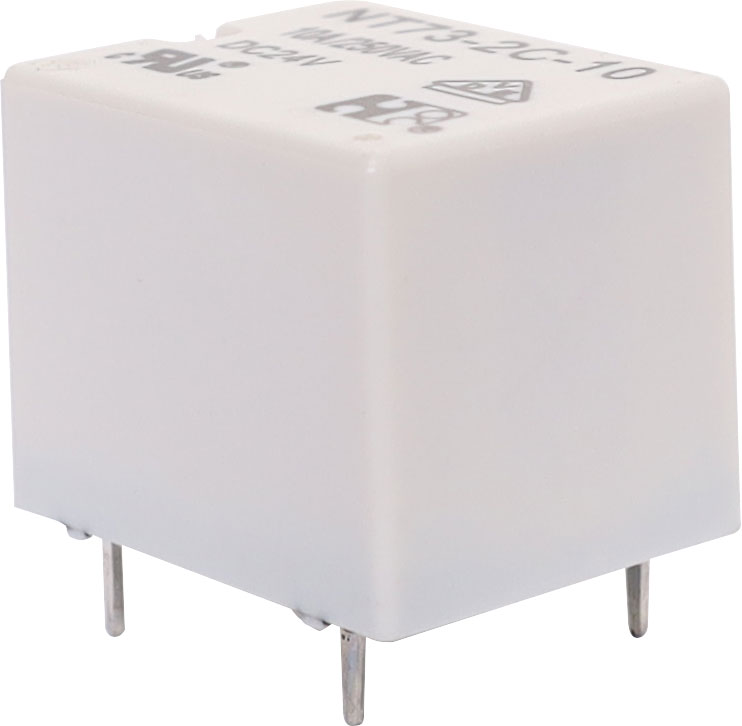

10A 24VDC SPDT PCB Mount Relay

Specifications:

Max switching voltage ac: 380V

• Max switching voltage dc: 110V
• Max switching current ac: 10A
• Max switching current dc: 10A
• Max switching power ac: 2500VA
• Max switching power dc: 420W
• Contact material: Silver alloy
• Coil resistance (24V): 1600Ω
• Max coil power: 360mW
• Insulation resistance: >250MΩ @ 500V dc
• Dielectric strength (for 1 min):
• 750V ac between open contacts
• 1500V ac between coil & contact
• Electrical life: 100,000 operations
• Mechanical life: 10 million operations
• Dimensions: ≈19.5W x 15.6L x 15.3H mm
