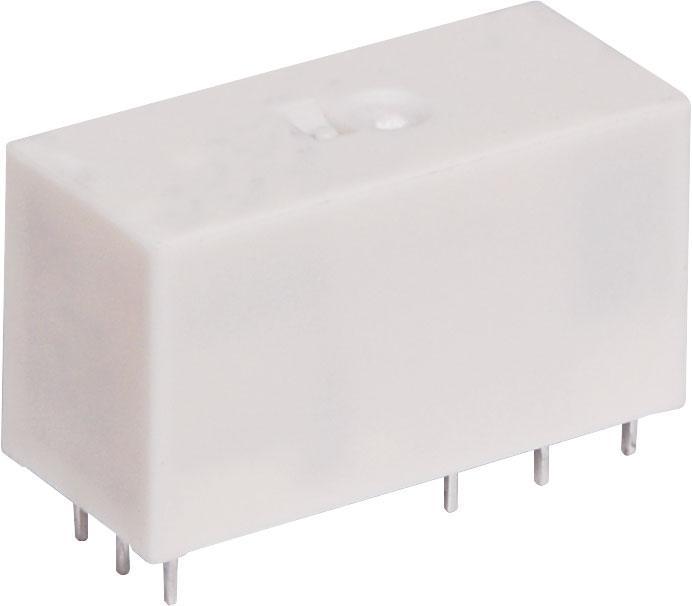

16A 12VDC SPDT PCB Mount Latching Relay

SKU: S4240
Double coil magnet latching relay. Coil requires pulse with voltage equivalent to the nominal coil voltage to operate. Ensure latch and reset coil are not powered simultaneously. Non-sealed type suitable for flow soldering.
$10.45

All Prices Shown are (ex GST)
Bulk Pricing
ea $10.45
10+ $9.41
40+ $8.45
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

16A SPDT mini relay. PCB mount style. 12V DC coil. Double coil magnet latching relay. Coil requires pulse with voltage equivalent to the nominal coil voltage to operate. Ensure latch and reset coil are not powered simultaneously. Non-sealed type suitable for flow soldering.

Specifications

Max Switching Voltage AC: 440V

  • Max Switching Current AC (250V): 16A (2 coil 0.6W)
  • Max Switching Power AC: 4000VA
  • Contact Material: Silver alloy
  • Coil Resistance: 2 x 240Ω
  • Max Coil Power: 0.6W
  • Insulation Resistance: >1000MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 1000V AC between open contacts
  • 5000V AC between coil & contact
  • Electrical Life: 50,000 operations
  • Mechanical Life: 5 million operations
  • Dimensions: 12.7W x 29L x 15.7H mm (excluding terminals)

Warranty & Returns

12 Months

We Offer 12 Months for this product
