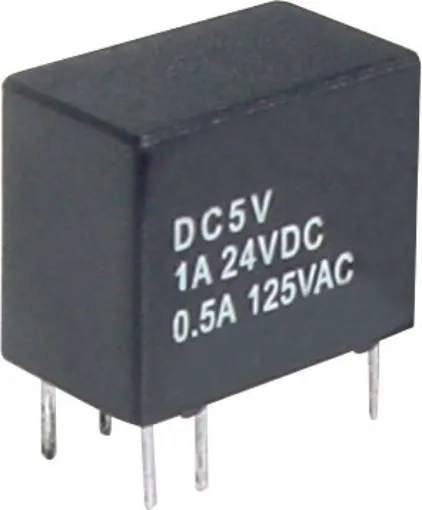

1A 24VDC SPDT PCB Mount Mini Relay

SKU: S4114
Max voltage: 125V AC, 60V DC Max current: 1A DC Max VA (Watts): 62.5VA (30W) Contact material: Gold Plated Silver Coil resistance: 3840&Omega Max coil power: 150mw Insulation resistance: >1000M&Omega @ 500V DC Dielectric strength (for 1 min): 400V AC between open contacts 1000V AC between coil & contact Electrical life: 100,00
$5.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $5.18
10+ $4.73
40+ $4.27
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A 1A SPDT PCB mount relay with sealed construction suitable for immersion cleaning. 24V DC coil.

Specifications:

Max Switching Voltage: 125V AC, 60V DC

  • Max Switching Current: 1A DC
  • Max VA (Watts): 62.5VA (30W)
  • Contact Material: Gold Plated Silver
  • Coil Resistance: 3840Ω
  • Max Coil Power: 150mw
  • Insulation Resistance: >1000MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 400V AC between open contacts
  • 1000V AC between coil & contact
  • Electrical Life: 100,000 operations
  • Mechanical Life: 5 million operations
  • Dimensions: ˜12.5W x 7.5L x 10H mm
