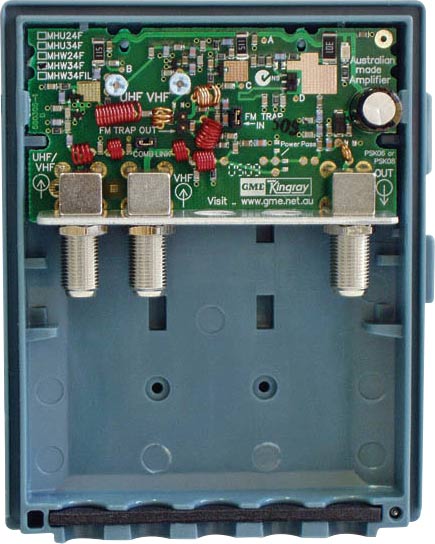

Masthead Antenna Amplifier UHF/VHF F Type

Manufacturer: Kingray
SKU: L2062A
As the name suggests, this amplifier is mounted on the antenna mast (as close to the antenna as possible) to avoid any signal loss from the connecting cable. It has inputs for a separate VHF or UHF antenna or a combined input for both. Signal balance is a
$77.23

All Prices Shown are (ex GST)
Bulk Pricing
ea $77.23
2+ $74.55
4+ $71.14
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

The MHW35F is a VHF/UHF TV masthead amplifier with the capability of amplify signals either from combined or separate VHF and UHF antennas. The Kingray Masthead range includes both wideband and VHF or UHF only models & with UHF frequencies above 694 MHz filtered, 4G/LTE transmissions are filtered out. In addition to the 4G/LTE filtering, most wideband models include low band filtering to eliminate all services below 174 MHz. This amplifier also has the ability to allow FM radio signals to be passed through.

The masthead is powered remotely via a Kingray PSK06 or PSK08 series power supply (sold separately, see accessories below).

Package Contents
- Masthead Antenna Amplifier
- Cable Tie
- Installation Manual

Features

  • Frequency Range 174-230 MHz & 520-694 MHz
  • 35dB UHF Maximum Gain
  • 26dB VHF Maximum Gain
  • 15dB Gain Control for UHF
  • 16-12dB Tilt Control for VHF
  • Separate VHF & UHF Inputs or Combined Input
  • FM Radio 88-108 MHz Pass Through Selectable
  • 4G/LTE Filtering
  • Weatherproof Housing
  • High Output Figure of 108dB IMR3 (DIN45004B)
  • Connectors: F-Type
  • Power Consumption: 80mA
  • Suitable Power Supply: PSK06 Series or PSK08 Series

Specifications

Frequency range: VHF: 174–230 MHz, UHF: 520–694 MHz

  • Max gain: VHF: 22–26 dB, UHF: 35 dB
  • Output figure: 108 dB, DIN45004B @ (-60 dB IMR)
  • Noise figure: VHF: < 3 dB, UHF: < 2.5 dB
  • Gain control range: VHF: Tilt control 16 – 12dB, UHF: 15dB
  • Supply voltage: PSK08/F, KPS08/F, PSK06/F, KPS06/F
  • Pager filter: -25 dB @ 148 MHz and 158 MHz
  • FM filter: -25 dB @ 88–108 MHz
  • Band 1 filter: -30 dB @ 44 MHz

Warranty & Returns

3 Years

We Offer 3 Years for this product
