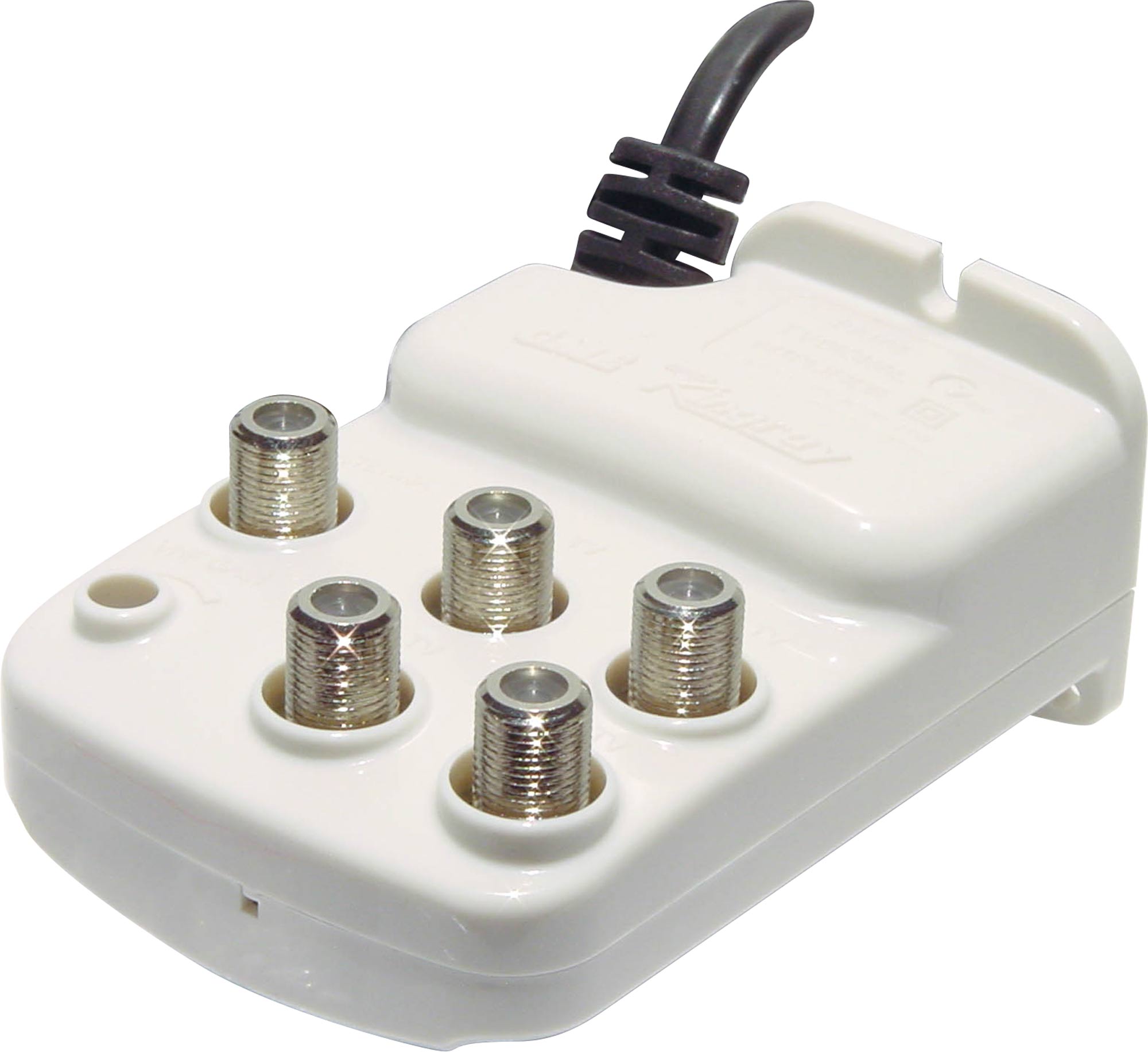

4 Way MATV Booster Amplifier / Splitter F Type

Manufacturer: Kingray
Be the first to review this product
These amplifiers are ideal for use at home where you want to operate more than one TV. Installation is simple. Run a single cable from each outlet back to the amplifier. Boosts antenna signal by approximately 10-12dB which ensures a strong signal for im
SKU: L2051
$100.86
Per ea
Quantity Price
ea $100.86
2+ $95.68
4+ $93.18

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

These amplifiers are ideal for use at home where you want to operate more than one TV. Installation is simple. Run a single cable from each outlet back to the amplifier. Boosts antenna signal by approximately 10-12dB which ensures a strong signal for improved TV reception. Supplied with an F-type male to PAL female adaptor.

In the box
4 Way MATV Booster Amplifier / Splitter F Type
F to PAL Adapters x 5
Installation Manual

Features

  • Frequency Range 44-470 MHz & 470-860 MHz
  • 16dB Maximum Gain
  • 8dB VHF Gain Control
  • Single Input
  • Four Outputs
  • F to Belling Lee (PAL) Adapters Included
  • High Output Figure of 100dB IMR3 (DIN45004B)
  • <4dB Noise Figure
  • Connectors: F-Type
  • Mains Powered 230-240V AC

Specifications

VHF

  • Frequency Range: 44-470
  • Maximum Gain (dB): 12-14
  • Inputs : 1
  • Noise Figure (dB): <3.5
  • Gain Control (dB): N/A
  • Mains: 230 -240V AC
  • Output Figure DIN45004B (uV): 100
  • UHF
  • Frequency Range: 470-860
  • Maximum Gain (dB): 16
  • Inputs : 1
  • Noise Figure (dB): <3.5
  • Gain Control (dB): N/A
  • Mains: 230 -240V AC
  • Output Figure DIN45004B (uV): 100

3 Years

We Offer 3 Years for this product
