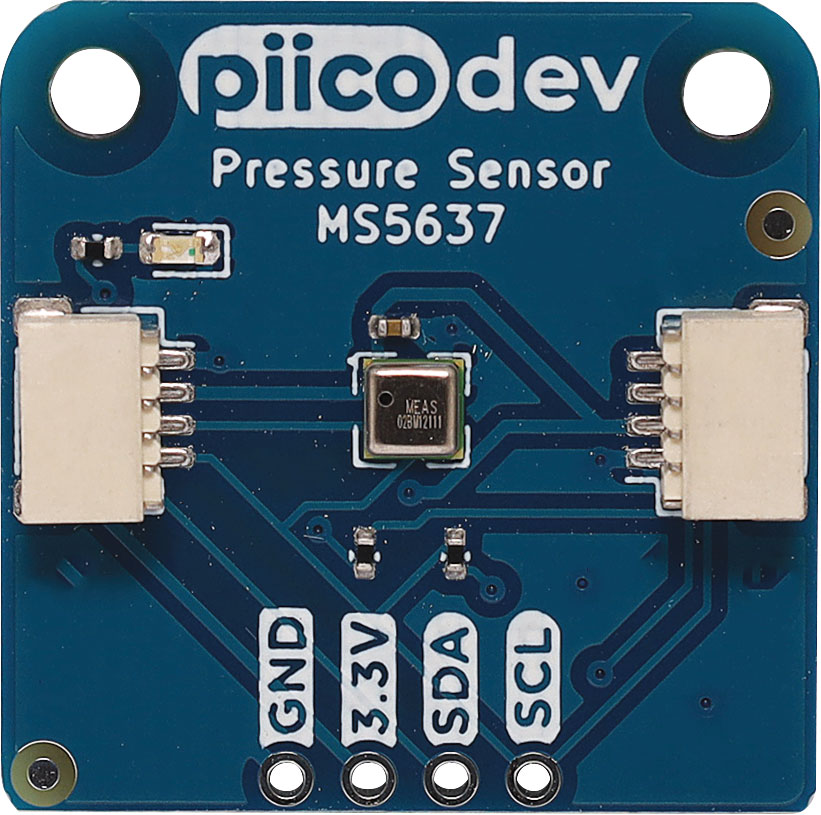

PiicoDev MS5637 Pressure Sensor

Be the first to review this product
Our PiicoDev® Pressure Sensor is perfect for measuring barometric pressure or inferring altitude from air pressure.
SKU: Z6585
$7.82
Per ea
QuantityPrice
ea$7.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Our PiicoDev® Pressure Sensor is perfect for measuring barometric pressure or inferring altitude from air pressure - the on-board MS5637 is very sensitive, factory calibrated and is capable of measuring differences as small as 13cm! Use it for home weather stations, detecting changes in altitude, or pneumatic-based control projects.

Features

  • Accurate air pressure measurements
  • PiicoDev connector, compatible with Qwiic and STEMMA QT (3.3V only)
  • 2.54mm breakout for breadboarding/prototyping

Specifications

I2C address: 0x76

  • Dimensions: 25.4x25.4mm
  • Mounting Holes: 2x M2.5
  • Operating range: 300 to 1200 hPa, -40 to 85°C
  • Error band at 25°C: ±2 hPa

12 Months

We Offer 12 Months for this product
