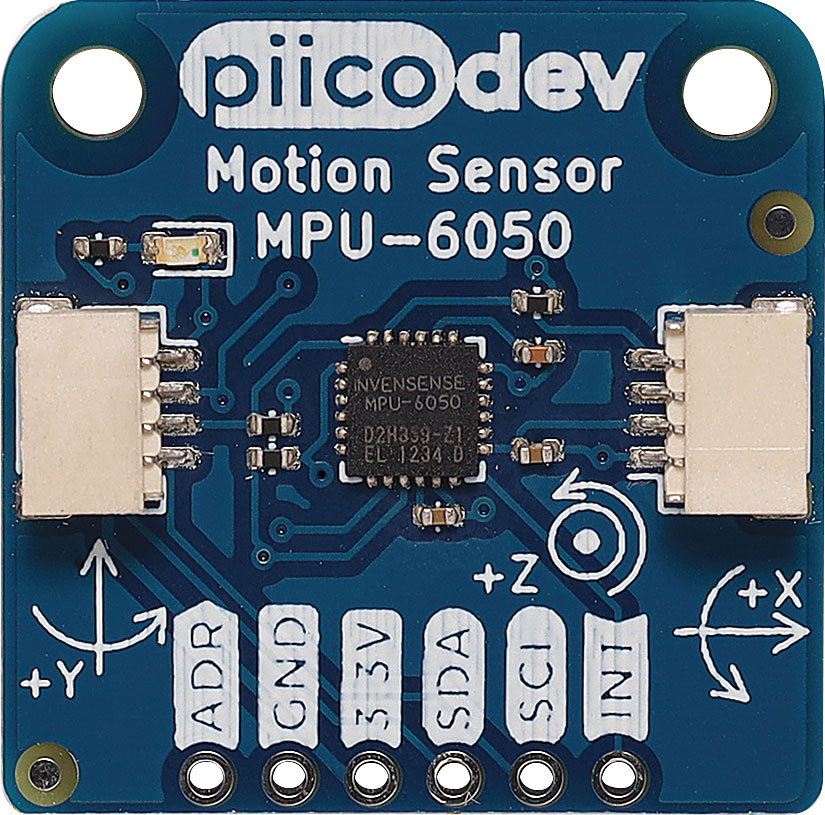

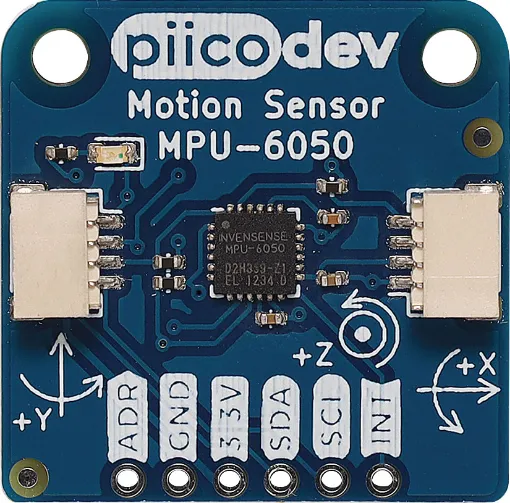

PiicoDev MPU6050 Motion Sensor

Be the first to review this product
Our PiicoDev® Motion Sensor makes it super easy to detect linear or angular motion in your next project.
SKU: Z6584
$9.25

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Our PiicoDev® Motion Sensor makes it super easy to detect linear or angular motion in your next project. The Motion Sensor features a the ubiquitous MPU-6050 6-axis Inertial Measurement Unit (IMU) featuring 16-bit resolution Accelerometer and Gyroscope.

Features

  • Measure linear and angular motion
  • Detect free fall or bumps/knocks
  • PiicoDev connector, compatible with Qwiic and STEMMA QT (3.3V only)
  • 2.54mm breakout for breadboarding/prototyping

Specifications

Default I2C address: 0x68 (Pull ADR high, or solder the address jumper for 0x69)

  • Dimensions: 25.4x25.4mm
  • Mounting Holes: 2x M2.5
  • Operating Voltage: 2.375 to 3.46V
  • Accelerometer Sensitivity: ±2 / ±4 / ±8 / ±16 g
  • Gyroscope Sensitivity: ±250 / ±500 / ±1000 / ±2000 °/s
  • Accelerometer Zero-G output (25°C, worst case): ±80mg
  • Gyroscope Zero-Rate output (25°C): ±20°/s
