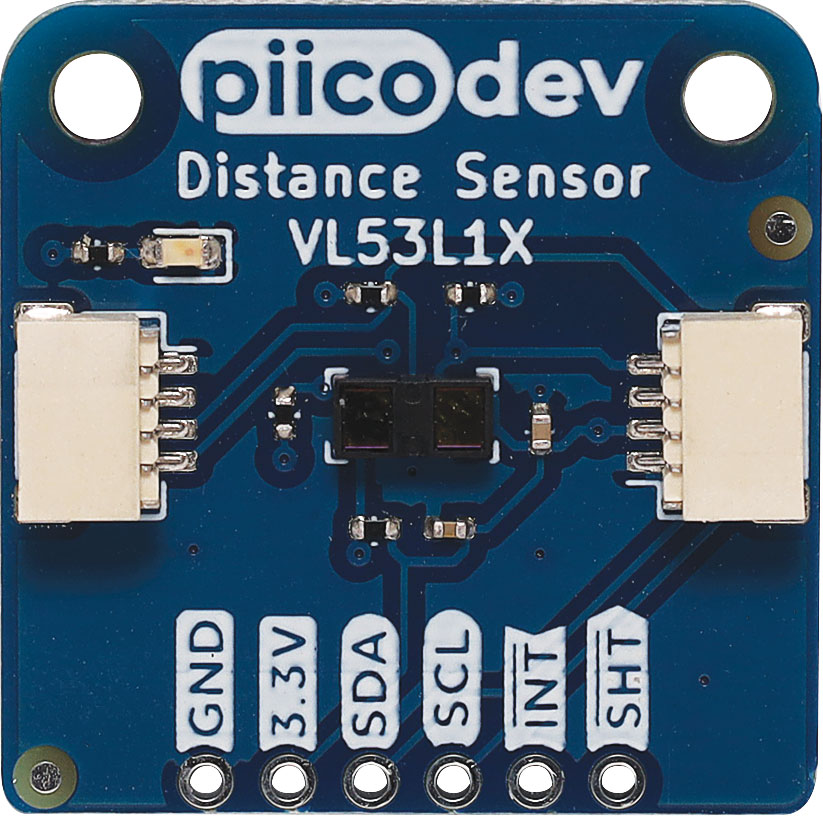

PiicoDev VL53L1X Distance Sensor

Be the first to review this product
The PiicoDev® Distance Sensor is a long-distance laser-ranging sensor that uses Time-of-Flight (ToF) to accurately measure distances up to 4m.
SKU: Z6583
$17.27
Per ea
QuantityPrice
ea$17.27

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The PiicoDev® Distance Sensor is a long-distance laser-ranging sensor that uses Time-of-Flight (ToF) to accurately measure distances up to 4m. Once you have this sensor dialled-in you can measure distances accurately down to the millimeter. These sensors work best indoors.

Note: This module may arrive with a protective film over the sensor. Carefully remove this film before use for most accurate results.

Features

  • Small size, millimetre precision
  • Can be protected behind many cover-window materials.
  • PiicoDev connector, compatible with Qwiic and STEMMA QT (3.3V only)
  • 2.54mm breakout for breadboarding/prototyping

Specifications

Default I2C address: 0x29

  • Typical absolute ranging error ±20mm
  • Typical repeatability: ±1%
  • Dimensions: 25.4x25.4mm
  • Mounting Holes: 2x M2.5
  • Operating Voltage: 2.6 to 3.5V

12 Months

We Offer 12 Months for this product
