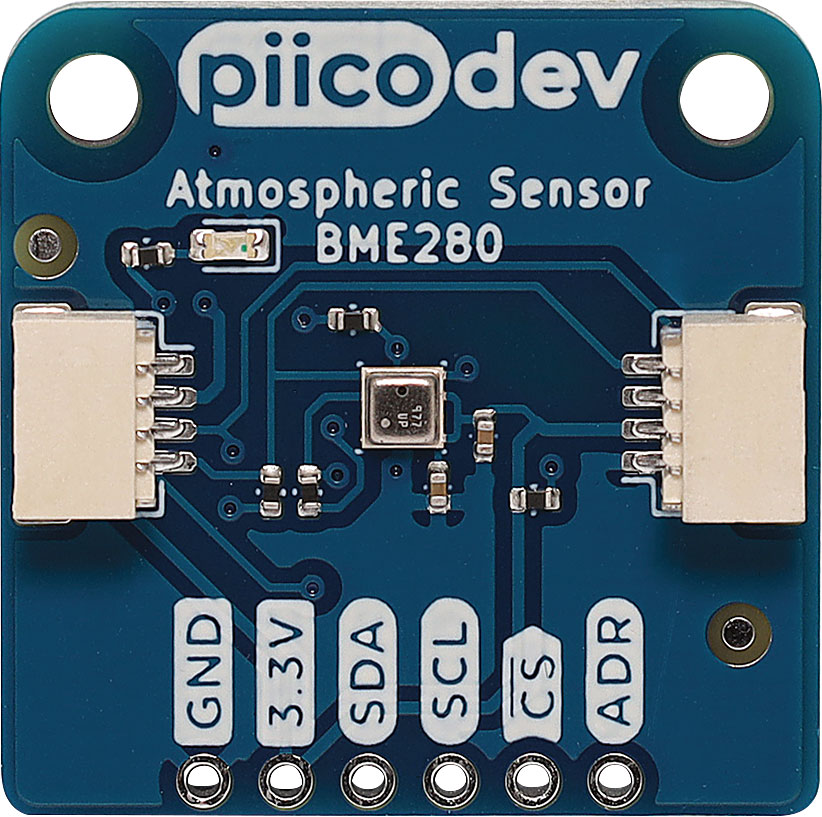

PiicoDev BME280 Atmospheric Sensor

Be the first to review this product
The PiicoDev® Atmospheric Sensor allows you to easily measure barometric pressure, humidity, and temperature. Use it to build your own weather station or perform experiments.
SKU: Z6581
$12.27
Per ea
QuantityPrice
ea$12.27

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The PiicoDev® Atmospheric Sensor allows you to easily measure barometric pressure, humidity, and temperature. Use it to build your own weather station or perform experiments. Better still, you can connect to this sensor using our PiicoDev system - no soldering is required to connect the PiicoDev Atmospheric Sensor to other devices in the PiicoDev family.

Features

  • Measure temperature, pressure and relative humidity
  • PiicoDev connector, compatible with Qwiic and STEMMA QT (3.3V only)
  • 2.54mm breakout for breadboarding/prototyping

Specifications

Default address: 0x77 (jumper-selectable: 0x76)

  • The BME280 measures:
  • -40 to +85°C
  • 0 to 100% Relative Humidity
  • 300 to 1100 hPa
  • Breakout connector: 3.3V SPI interface, 5V tolerant I2C interface (with pull-up resistors to 3.3V)

12 Months

We Offer 12 Months for this product
