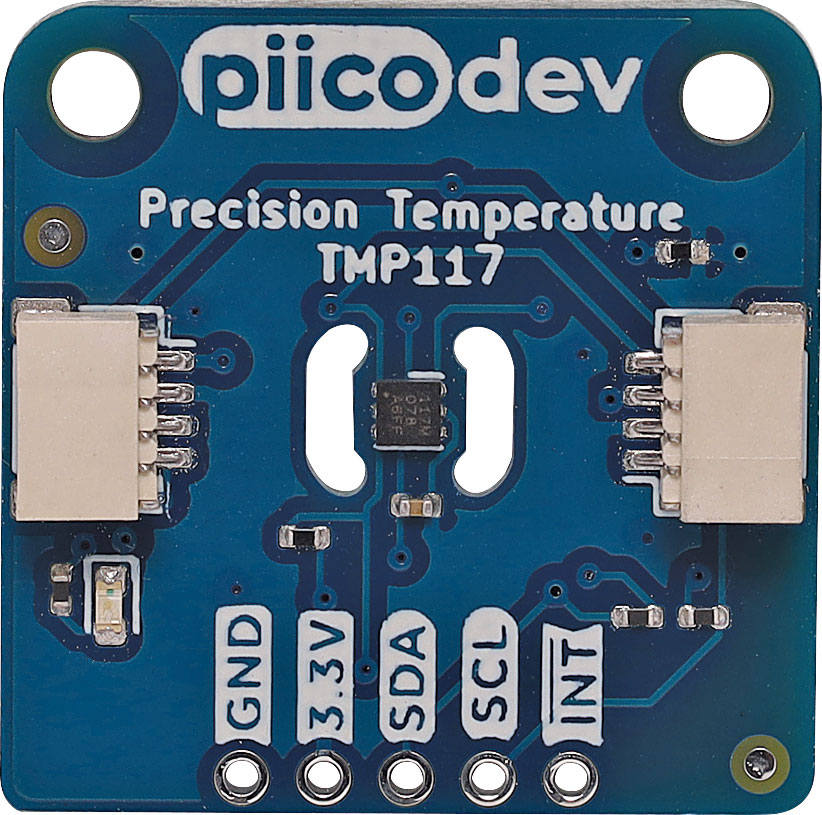

PiicoDev TMP117 Precision Temperature Sensor

Be the first to review this product
The PiicoDev Precision Temperature Sensor features a low-power, high precision TMP117 with 16-bit resolution and an accuracy of ±0.1°C (across -20°C to +50°C) with no calibration required.
SKU: Z6580
$9.05
Per ea
QuantityPrice
ea$9.05

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The PiicoDev Precision Temperature Sensor features a low-power, high precision TMP117 with 16-bit resolution and an accuracy of ±0.1°C (across -20°C to +50°C) with no calibration required. The full operating range is -55°C to +150°C.

Features

  • Small size, high accuracy
  • PiicoDev connector, compatible with Qwiic and STEMMA QT (3.3V only)
  • 2.54mm breakout for breadboarding/prototyping

Specifications

4 configurable I2C addresses. Default: 0x48

  • Dimensions: 25.4x25.4mm
  • Mounting Holes: 2x M2.5
  • TMP117:
  • ±0.1°C from -20°C to +50°C
  • ±0.15°C from -40°C to +70°C
  • ±0.2°C from -40°C to +100°C
  • ±0.25°C from -55°C to +125°C
  • ±0.3°C from -55°C to +150°C
  • 0.0078°C resolution (1 LSB)
