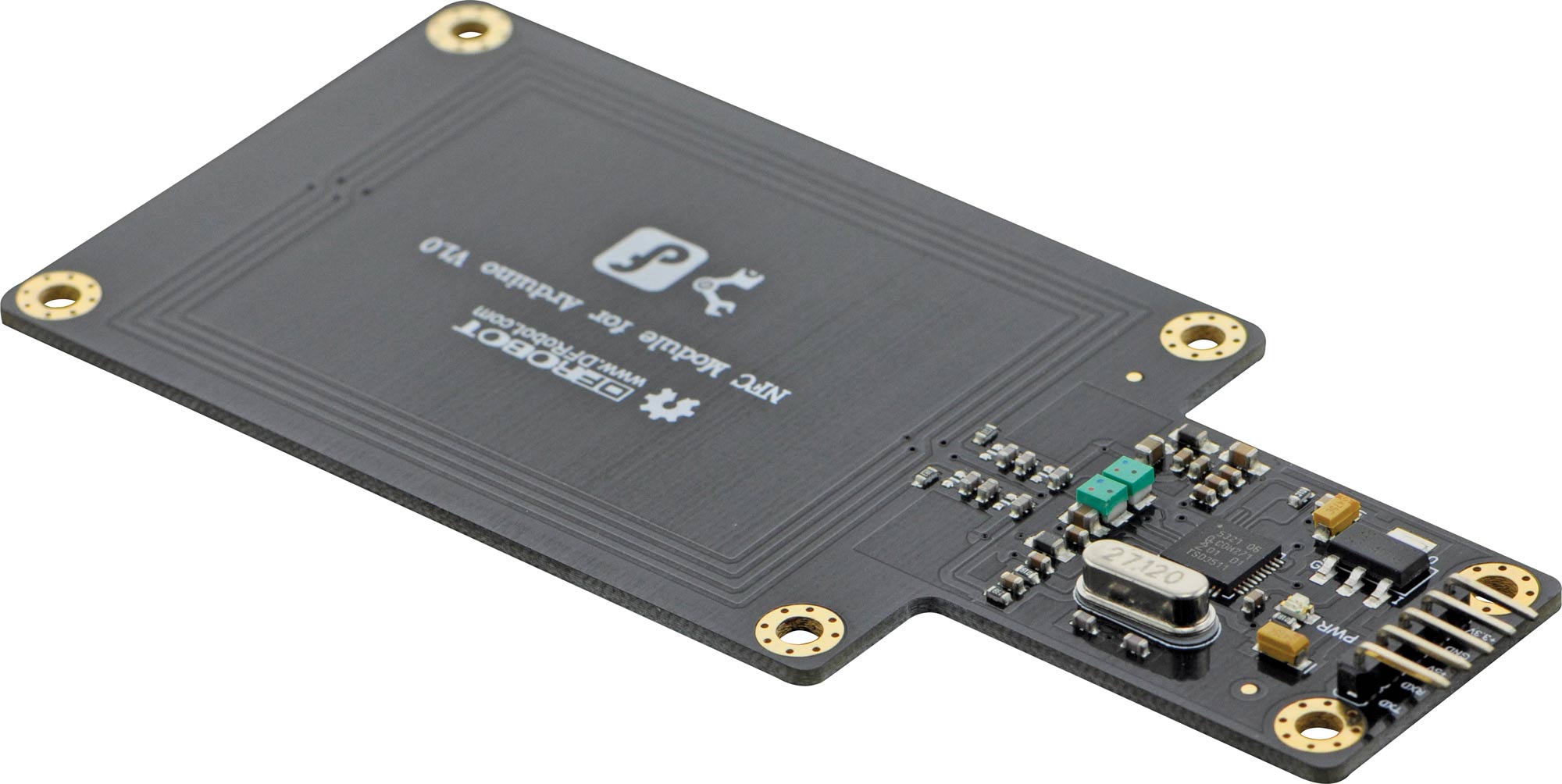

DFR0231 NFC Module for Arduino

Be the first to review this product
The NFC Module for Arduino is designed to extend this powerful feature for your project or application based on Arduino.It integrates a PN532 NFC controller from Philips.The driver interface for this product is UART interface of the microcontroller.
SKU: Z6542
$31.82
Per ea
QuantityPrice
ea$31.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The NFC Module for Arduino is designed to extend this powerful feature for your project or application based on Arduino. It integrates a PN532 NFC controller from Philips. The driver interface for this product is UART interface of the microcontroller. So it''s possible for you to test it via a USB to UART converter directly. On the other hand, for the applications with microcontroller, the module provides an event for your processor when detects the NFC tags, stickers, key fobs, or cards via high speed serial UART.

Applications Include:
Contactless payment systems
Bluetooth and Wi-Fi connections
Social networking situations, such as sharing contacts, photos, videos or files
Electronic identity documents and keycards
Smartphone automation and NFC tags

NFC Module Wikidocs Page

Specifications

Working Voltage: 3.3v or 5v

  • Host Interface: UART
  • Integrate PN532 NFC controller
  • Supports ISO 14443A/MIFARE
  • Supports ISO 14443B in reader/writer mode only
  • Typical max operating distance for detecting NFC tags from 20 to 50mm depending on the antenna *size of the tag
  • Serve for contactless communication at 13.56MHz
  • Size: 11cm x 5cm

12 Months

We Offer 12 Months for this product
