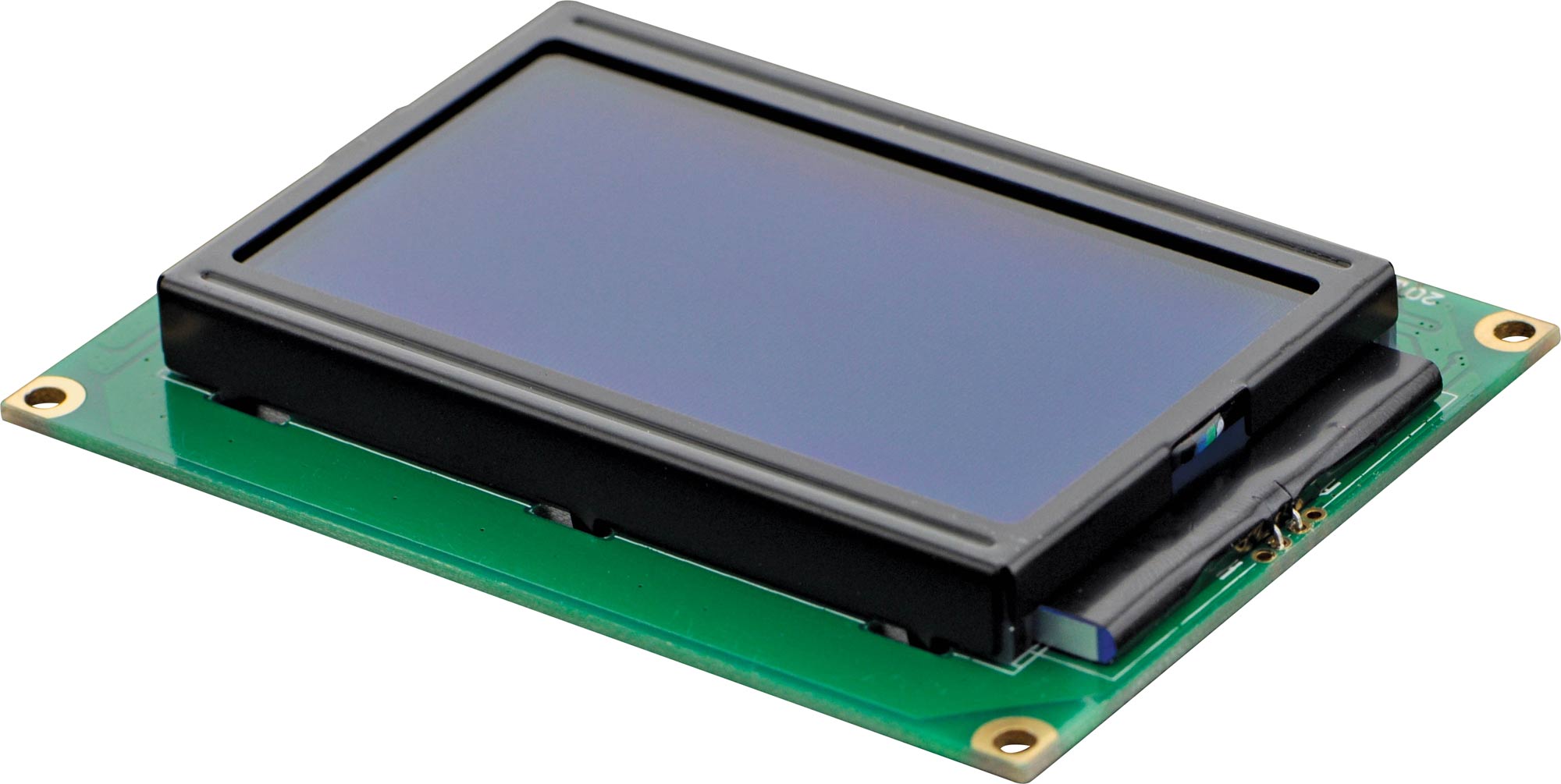

DFR0091 128 x 64 Arduino 3 Wire Serial LCD Display Module

Be the first to review this product
This LCD module uses a 128x64 liquid crystal display that supports Chinese characters, English characters and even graphics. It is suitable for interactive work with Arduino.
SKU: Z6502
$40.91 $26.36
Per ea
Save $14.55
QuantityPrice
ea $40.91 $26.36

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This LCD module uses a 128x64 liquid crystal display that support Chinese characters, English characters and even graphics. It is suitable for interactive work with Arduino. It features a backlight control, parallel or serial control & contrast adjust. It can be connected to our interface shield via IDC6 socket and cables. The LCD is shipped in Parallel mode as default. The resistor R9 is used to set the interface mode. To switch to SPI mode, the R9 resistor needs to be moved to R10.

3 Wire Serial LCD Display Wikidocs Page

Specifications

Power Supply: 4.5~5.5V

  • Microcontroller: ST7920
  • Resolution: 128×64
  • Display Colour: Blue lit with white character
  • View angle: 170 °C
  • LCD module: STN
  • Control interface: 8/4 bits Parallel (Default) or 3 bits serial (SPI)
  • Module size: 93x70x22mm (3.7x2.8x0.87''"")
  • Visuable size: 73x39mm (2.9x1.5''"")

12 Months

We Offer 12 Months for this product
