Soldering SMD Components Practice Board Kit

SKU: Z6498

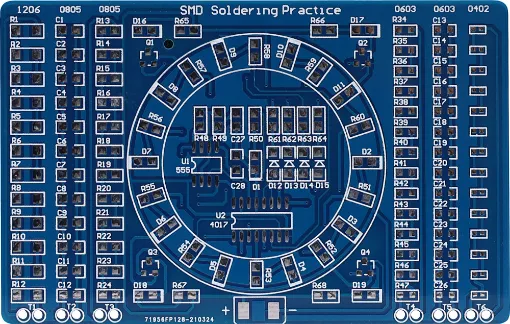

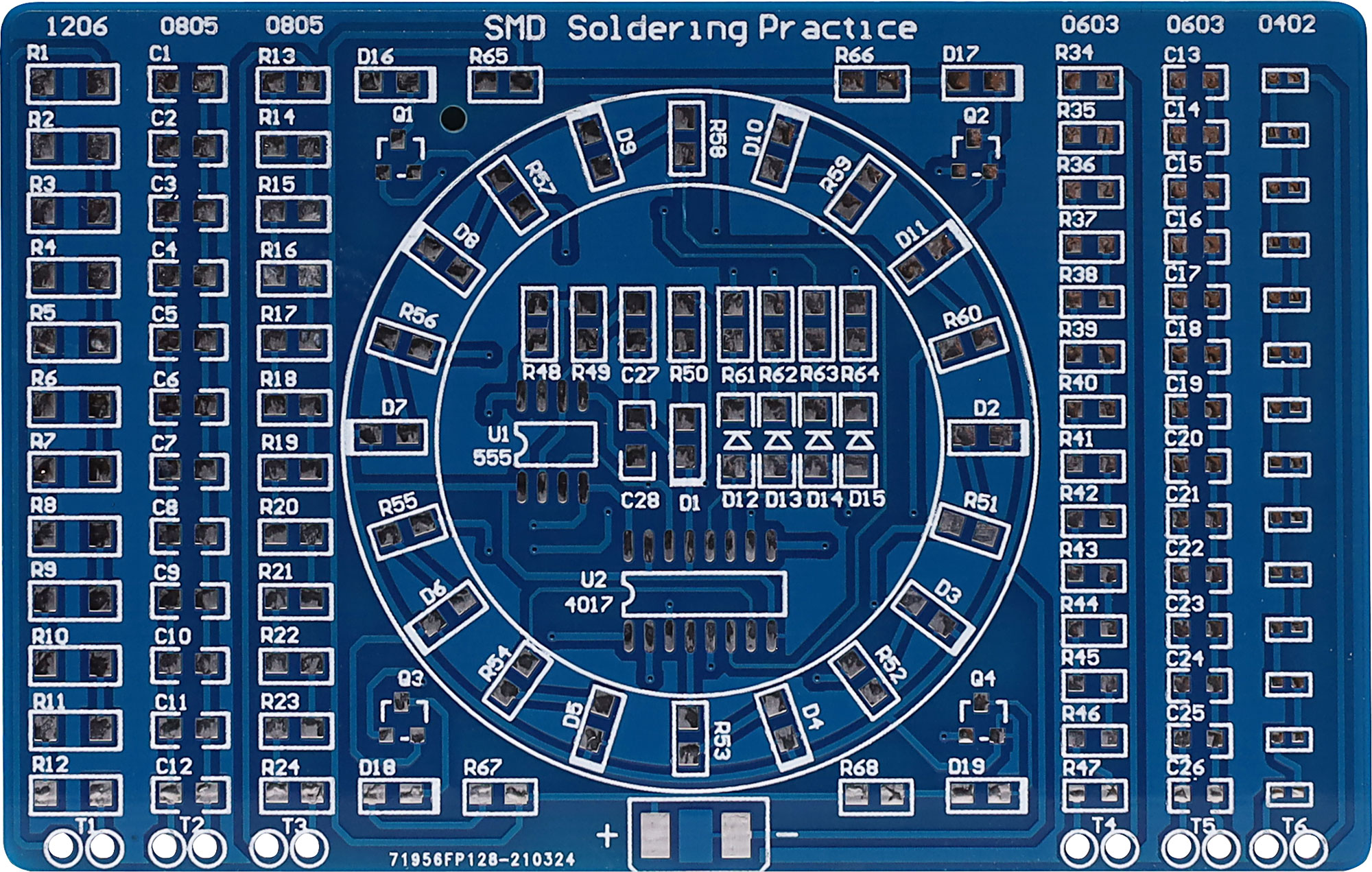

This Soldering SMD Practice Board Kit contains all the components needed for users to learn and improve their soldering abilities.
$9.05

All Prices Shown are (ex GST)
Bulk Pricing
ea $9.05
2+ $7.23
4+ $6.32
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This Soldering SMD Practice Board Kit contains all the components needed for users to learn and improve their soldering abilities. Suitable for students, electronic engineers and enthusiasts. Made with PCB materials to ensure long-terms use and durability.

Kit Includes:
1206 Resistor x12
0805 Capacitor x12
0805 Resistor x12
0603 Resistor x14
0603 Capacitor x14
0402 Capacitor x14
0805 Resistor 1K Ohm x15
LED x11
LED x4
J3Y Triode x4
4148 Diode x4
0805 Resistor 10K Ohm x5
0805 Resistor 2M Ohm x1
0805 Capacitor 0.1uF x2
IC NE555 x1
IC CD4017 x1

Features

  • Board material: international standard sheet, all tin pad, high strength fire drop material, disassembly, can be repeated.
  • PCB board design features commonly used SMD components.
  • The left and right of the three components are used to practice welding, each column with a test point.
  • The middle of the circular circuit has been designed for the water lamp circuit, by the CD4017, NE555, light-emitting diodes, welding power can work.
  • The circuit is also used on the back, a ruler to facilitate the measurement of components.There are examples of PCB conductors to facilitate the use of PCB design.

Specifications

Board Size: 90*60mm

  • Board Thickness: 1.6mm
  • Flow Water Lamp Circuit: CD4017, NE555, LED, after correct connnection, it will be operated.
  • Operating Voltage: 3 -12V
  • Number of components: 125
  • Number of solder joints: 274
  • Use solder length: 35CM (diameter: 0.6mm)
  • Sample soldering time: 35 minutes.
