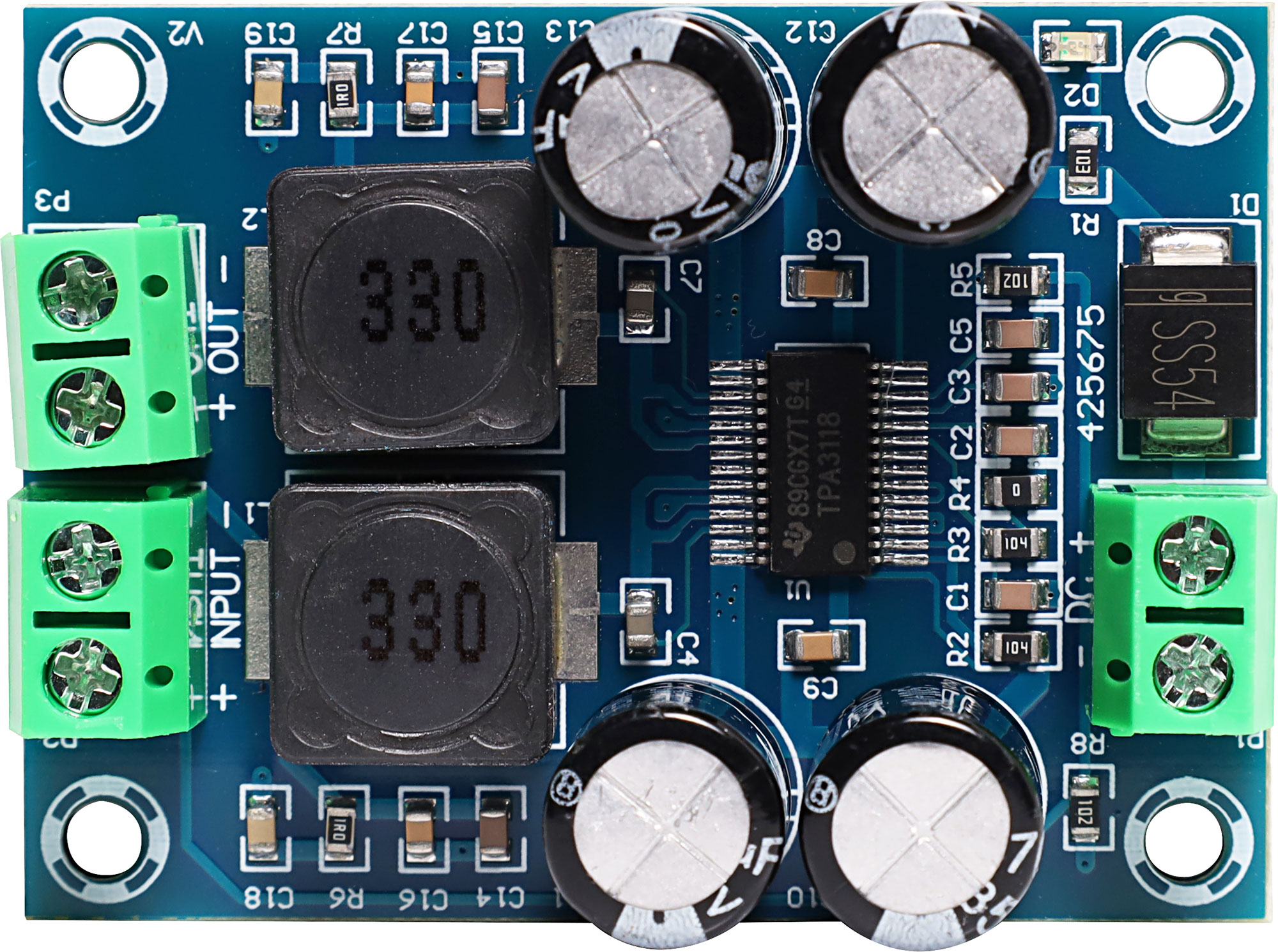

TPA3118 60W Mono Digital Audio Power Amplifier Board

Be the first to review this product
The TPA3118 60W Mono Digital Audio Power Amplifier Board is a high-performance audio amplifier designed for applications requiring compact size, low resistance, and high power output.
SKU: Z6494
$18.14
Per ea
QuantityPrice
ea$18.14
2+$16.32
4+$13.59

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The TPA3118 60W Mono Digital Audio Power Amplifier Board is a high-performance audio amplifier designed for applications requiring compact size, low resistance, and high power output. This model uses TI’s TPA3118 as the main chip, with a wide power supply range of DC10-24V. In the case of 24V power supply, the load of 2 ohm audio can reach 60W output, and the 60W output is limited to 2 ohms, and the output power of 4 or 6 ohms will drop. , The circuit adopts PBTL mode so it can achieve low resistance and high power, and large internal resistance speakers can be connected in parallel to achieve high power output.

Features

  • Delivers up to 60W output with a 2-ohm load under a 24V power supply.
  • Output power decreases proportionally for 4-ohm or 6-ohm loads.
  • Supports a DC input range of 10-24V, ensuring flexibility for various power supply configurations.
  • Designed in PBTL mode, enabling support for low resistance and high-power output

Specifications

Enlargement type: Class D

  • Work efficiency: 93%
  • Chip type: TPA3118
  • Power supply voltage: DC10-24V
  • Input current: 3A recommended
  • Output power: 60W*1
  • Frequency response range: 35HZ-88KHZ
  • Number of channels: mono
  • Impedance matching: 2-6 ohms

12 Months

We Offer 12 Months for this product
