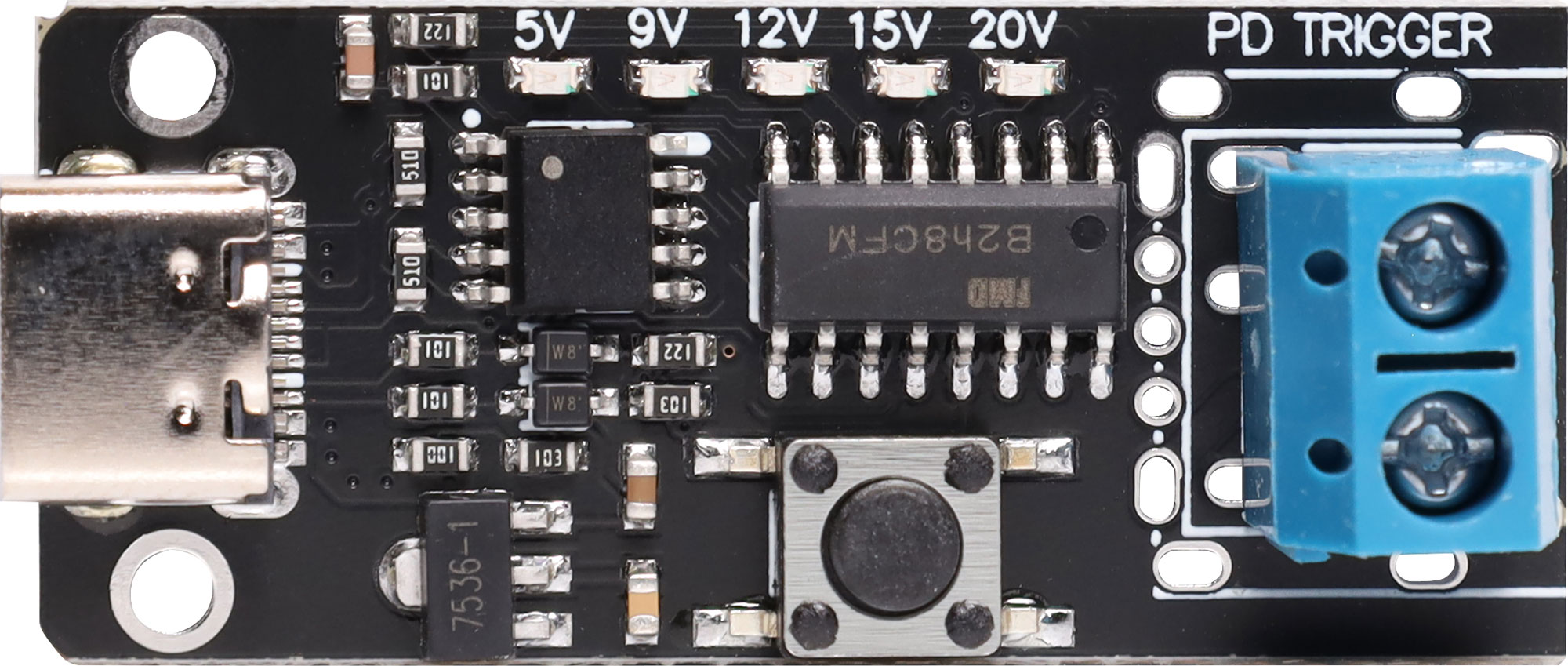

USB-C Fast Charge Trigger Board Module PD/QC 5A

SKU: Z6489
The USB-C Fast Charge Trigger Board Module is a high-performance, versatile solution designed to provide fast and efficient charging for a wide range of devices.
$9.05

All Prices Shown are (ex GST)
Bulk Pricing
ea $9.05
2+ $8.14
4+ $7.23
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This USB type C interface board allows you to trigger different power delivery (PD) and QuickCharge (QC) output voltages from a USB power supply. This allows you to power your project from a USB type C cable provided it runs of one of the standard PD voltages. Essentially the board acts as a bridge between a USB type C power source and your project. Compatible with USB PD 5V, 9V, 12V, 15V and 20V outputs (dependant on the connected power supply). The screw terminals can connect power input into your project. To select voltage desired, simply push the button on the board and the LED indicator on board will display the output voltage. Care should be taken to ensure that you do not apply a voltage too high for your project design. The board will remember the last chosen voltage setting when powered down.

Features

  • Acts as a USB power bridge between a standard PD or QC3.0 USB power supply and your project.
  • Select 5V, 9V, 12V, 15V or 20V using the on board button.
  • LED display for chosen voltage.
  • 5A maximum output current (up to 100W PD).
  • Last voltage setting memory when power is disconnected.

Specifications

Automatic switching voltage, 5-20V with EMarker, maximum 100W can be detected automatically.

  • Support 20V 5A 100w with E-Marker.
  • Support PD3.0, PD2.0, QC, FCP, AFC voltage decoy output, free mode switching, or set to support only PD.
  • Support 5V/9V/12V/15V/20V output (specific range is related to the connected power supply)
  • With key lock function, to prevent accidental operation (to avoid damaging load equipment by setting voltage wrongly)
  • 5V/9V/12V/15V/20V LED indication output.

Warranty & Returns

12 Months

We Offer 12 Months for this product
