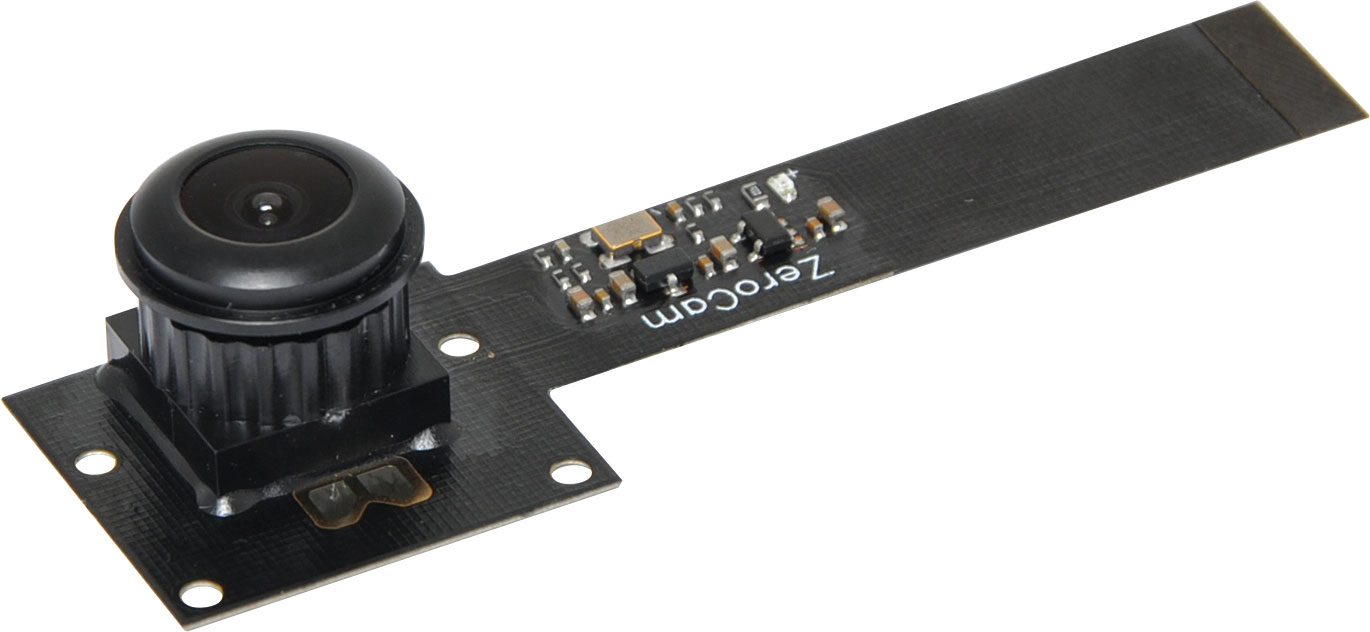

Raspberry Pi 5MP Fisheye Camera Module

Be the first to review this product
This Raspberry Pi 5MP Fisheye Camera Module is a compact camera module to suit the Raspberry Pi. This module offers 5MP resolution with a fish eye lens. It allows your Pi to record 1080p HD video at 30fs. 2592x1944 still shot. Suitable for use in time lapse, CCTV monitoring, web cam applications etc.
SKU: Z6473
$36.32
Per ea
QuantityPrice
ea$36.32
2+$32.95
4+$29.32

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This Raspberry Pi 5MP Fisheye Camera Module is a compact camera module to suit the Raspberry Pi. This module offers 5MP resolution with a fish eye lens. It allows your Pi to record 1080p HD video at 30fps. 2592x1944 still shot. Suitable for use in time lapse, CCTV monitoring, web cam applications etc.

Please Note: This camera module is suited to Pi Zero however it can be used with others if you use the Z6479 camera cable.

Specifications

Sensor: OV5647, 5MP 2592x1944 pixels

  • Pin: 22
  • Pitch: 0.5mm
  • AVDD: 2.7-3.3V (Typical2.8V)
  • DVDD: 1.45-1.8V
  • DOVDD: 1.7-3.3V
  • Lens Structure: 4P (650nm)
  • EFL: 3.52
  • FNO: 2.8
  • Output Format: YUV or RAW RGB
  • 1080p video at 30 FPS (or 60 FPS at 720p, 90 FPS at 480p)
  • F2.9 lens, 3.60 mm focal length
  • 170° Fisheye

12 Months

We Offer 12 Months for this product
