Raspberry Pi 5MP Night Vision Camera Board

SKU: Z6472
plugs directly into the CSI connector on the Raspberry Pi, and features two high-intensity Infrared LED spotlights for night time recording!
$45.41

All Prices Shown are (ex GST)
Bulk Pricing
ea $45.41
2+ $40.86
4+ $36.32
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

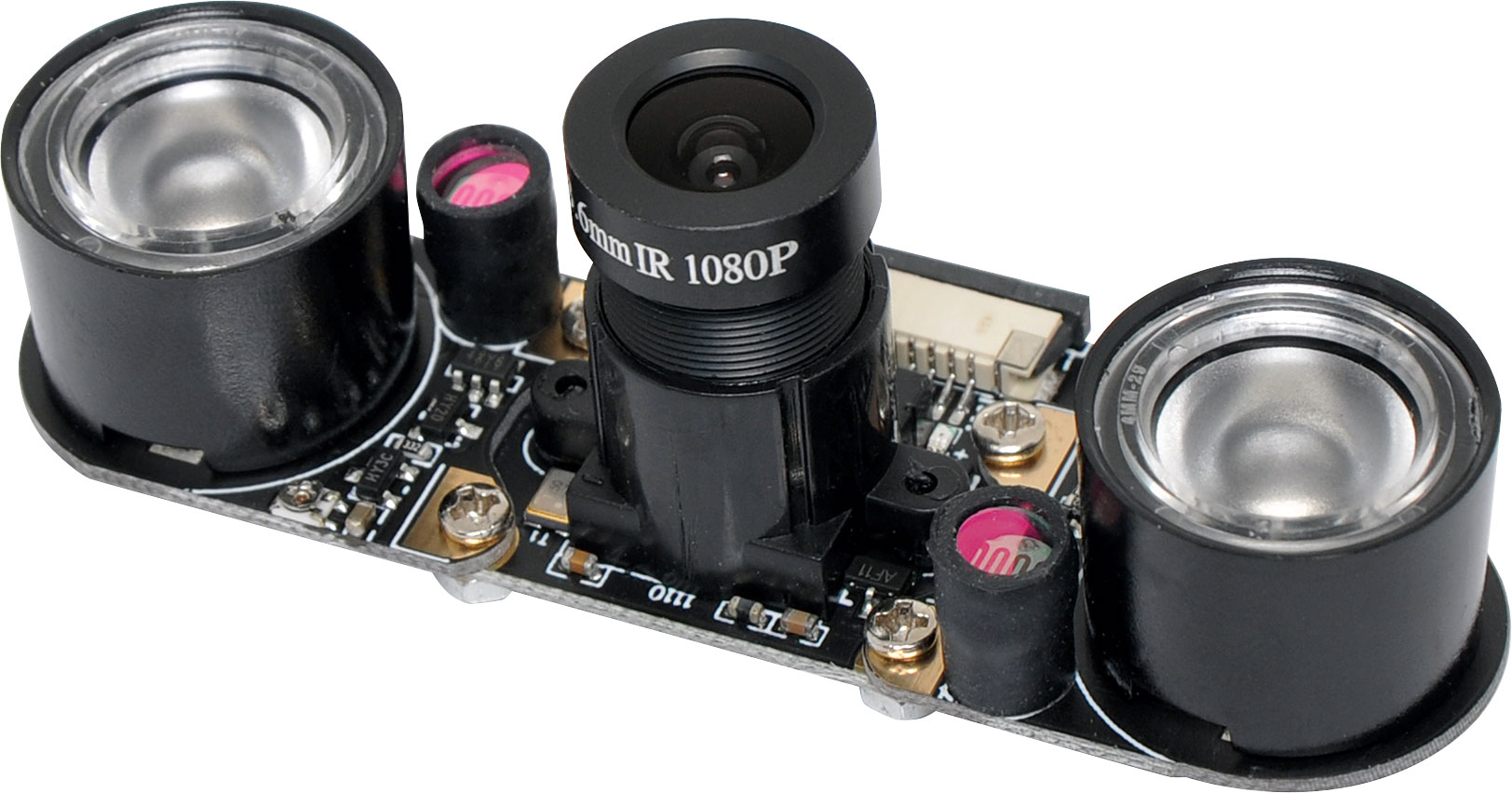

A compact 5MP Raspberry Pi camera module pre-fitted with two 1W IR LEDs for night time vision. Up to 1080p resolution. Ideal for surveillance and monitoring projects with the R-Pi. 3.6mm focal length. The module features a night vision focal adjustable camera, IR sensor light and 15cm CSI cable of camera cable. You can use the module with the following models; Raspberry Pi 4, 3 Model B+ / 3 / 2 or Raspberry Pi Zero W/1.3.

Note: No Raspberry Pi included in this package.

Package Contents:
1 x Camera
2 x IR lights
1 x 15 cm Raspberry Pi Camera Cable
1 x 15 cm Raspberry Pi Zero Camera Cable

Features

  • Raspberry Pi Night Vision Camera.
  • Compatible with all revisions of the Raspberry Pi
  • 5 Megapixel OV5647 Camera
  • 2 x 1W high-power 850 infrared LEDs
  • Onboard photo-resistor to detect ambient light
  • Onboard adjustable resistor, for controlling the ambient light threshold of toggling the infrared LED

Specifications

CSI camera port works with Raspberry Pi

  • OV5647 sensor 5MP 2592x1944 pixels
  • Lens: f2.3
  • CCD size: 1 / 4 inch
  • Focal Length: 3.6mm
  • FOV D: 70 degree
  • Sensor best resolution: 1080p
  • Supports: 1080p/30fps, 720p/60fps and 480p/90fps video record
  • 4 screw holes : used for attachment and connect power ( 3.3V output )
  • Dimensions: 72.6mm x 24mm
  • 3.3V power supply interface can be accessed sensitive infrared lamp or other device
  • Transparent lights for 1W high power infrared light photoreceptor 850
  • Photo-resistor: detecting ambient light intensity
