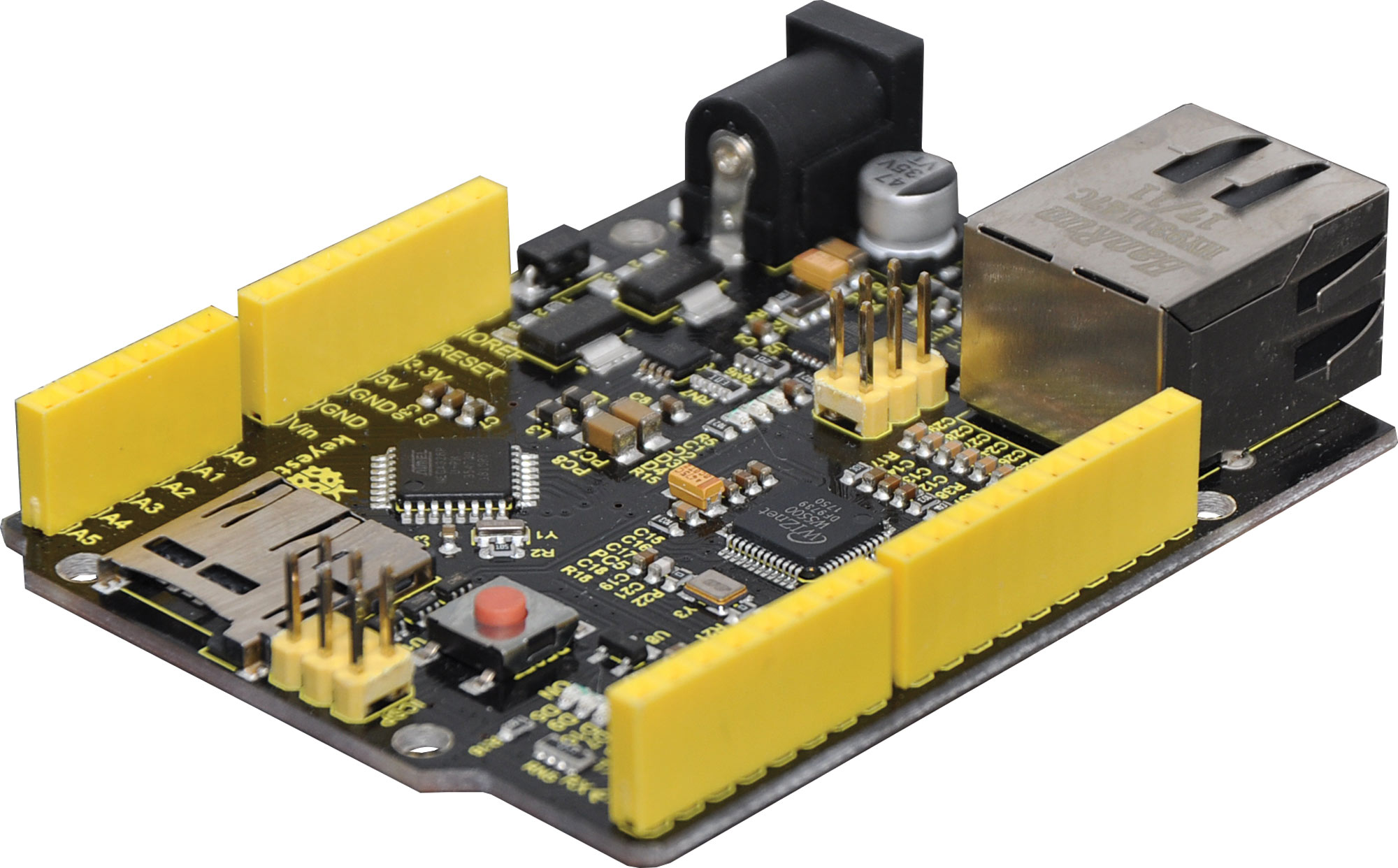

Arduino Compatible W5500 Ethernet Development Board

Be the first to review this product
This W5500 ethernet development board is based on the microcontroller of Arduino Ethernet. The board features integrated USB download, TF card slot and more functions on it. Its also fully compatible with UNO pins.
SKU: Z6467
$54.50
Per ea
QuantityPrice
ea$54.50
2+$49.05
4+$43.59

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Connect your Arduino design to the internet-of-things with this handy W5500 ethernet development board with atmega328p on board. Fully compatible with UNO with integrated USB download & micro SD card slot.

Features

  • In-built W5500 ethernet controller for instant IoT connection for your Arduino design
  • Uses standard libraries
  • On-board MicroSD card slot
  • atmega328p UNO compatible microcontroller
  • Standard pin outs and fully shield compatible
  • Works with standard Arduino libraries and an updated IDE.

Specifications

Main Chip: ATMEGA328 microcontroller

  • USB Power Supply: 5v
  • External Power: 7-12v (9v recommended)
  • Digital Input/Output Pins: 14 (of which 6 pins support PWM)
  • Analog Input Pin: 6
  • Built-in Flash Memory: 32K
  • SRAM: 2k
  • EEPROM: 1K
  • Clock Frequency: 16MH

12 Months

We Offer 12 Months for this product
