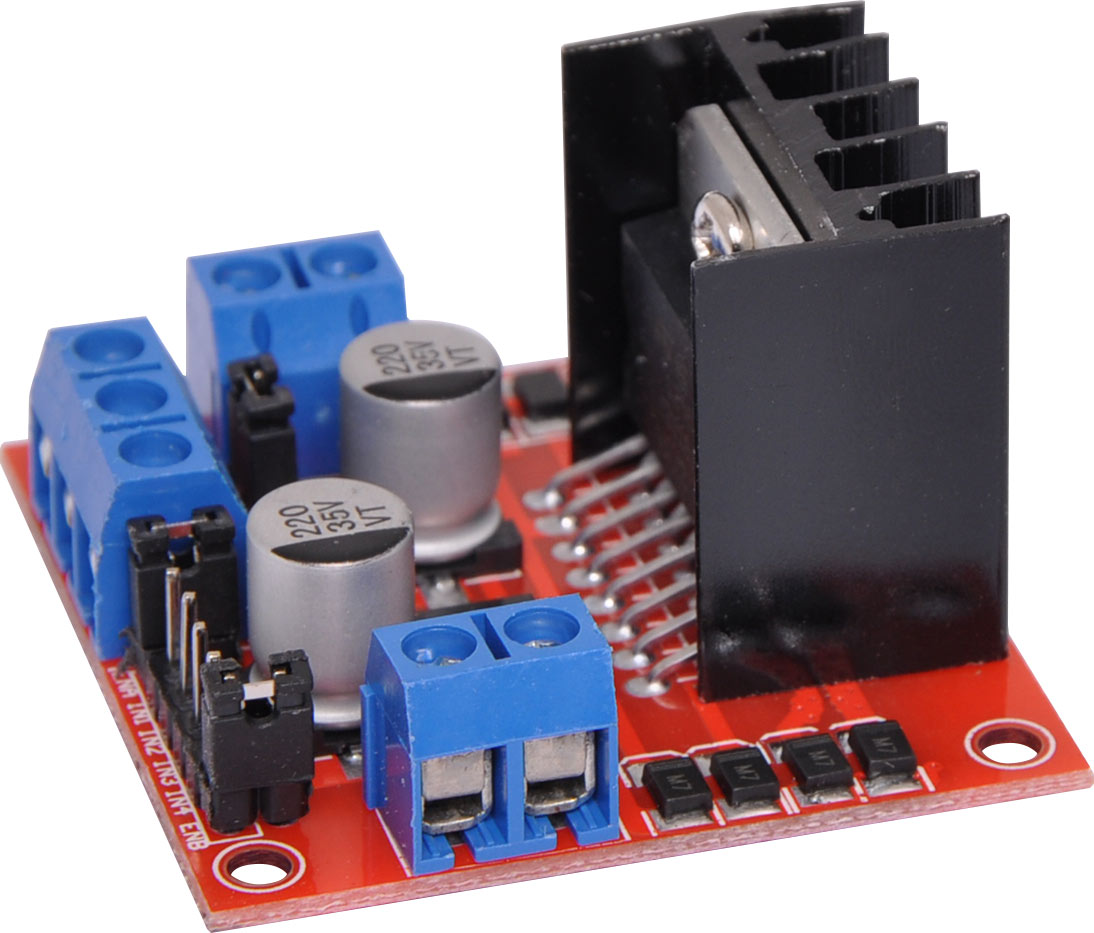

L298N Dual Motor Module for Arduino

Be the first to review this product
Uses an L298N H-Bridge designed to drive inductive loads, such as relays, solenoids, DC and stepping motors. It can also drive two independent DC motors or 1 stepper motor at 2A continuous current per channel. Standard Arduino shield dimensions with analog and digital output headers. 5V input.
SKU: Z6442
$15.41
Per ea
QuantityPrice
ea$15.41
2+$13.86
4+$12.32

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Uses an L298N H-Bridge designed to drive inductive loads, such as relays, solenoids, DC and stepping motors. It can also drive two independent DC motors or 1 stepper motor at 2A continuous current per channel. 5V input.

Features

  • Drive 2 DC motors with speed and direction control
  • Drive 1 stepper motor
  • 5 – 35V motor voltage range
  • 2.5A peak current per channel (2A continuous)

Specifications

Voltage Range: 5 – 35 VDC

  • Recommended Voltage Range: 7 – 12 VDC
  • Voltage Range (5V): 4.5 – 5.5 VDC
  • Max Current per Bridge: 2A
  • Max Power of Module: 25W
  • Driver Board: 54 x 44 x 28 mm
