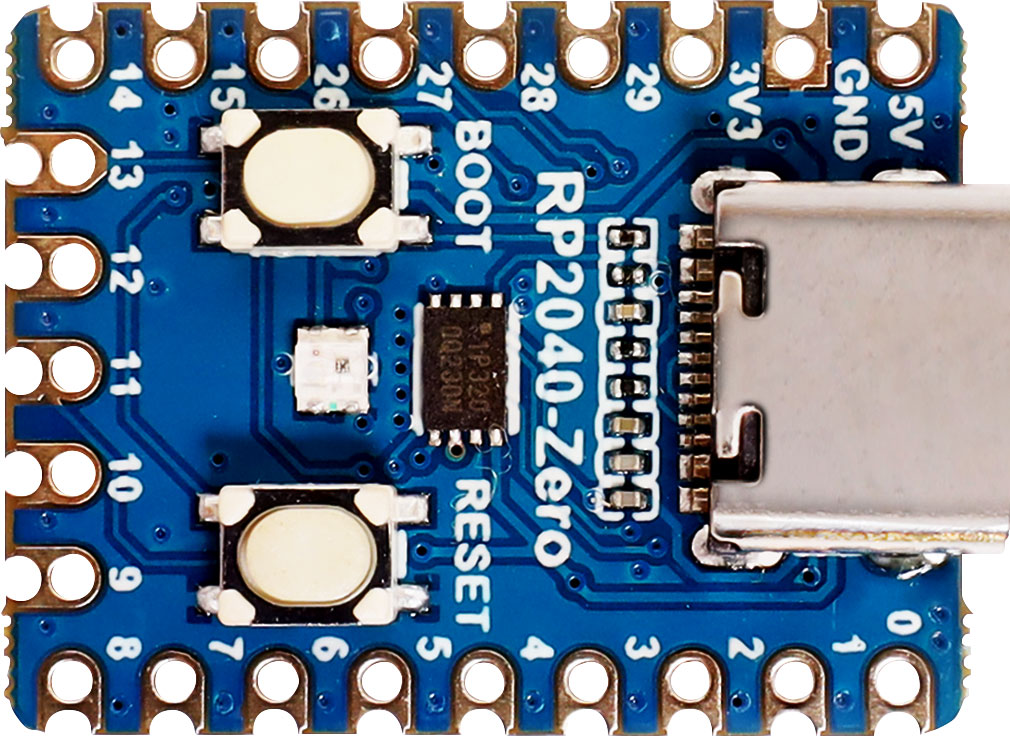

RP2040-Zero Development Board

Be the first to review this product
The RP2040-Zero, is a low-cost, high-performance Pico-like MCU board based on Raspberry Pi RP2040 microcontroller. 29 × multi-function GPIO pins. Configurable pin function, allows flexible development and integration.
SKU: Z6434
$7.23
Per ea
QuantityPrice
ea$7.23

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The RP2040-Zero, is a low-cost, high-performance Pico-like MCU board based on Raspberry Pi RP2040 microcontroller. 29 × multi-function GPIO pins. Configurable pin function, allows flexible development and integration.

pic

Specifications

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom

  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 2MB of on-board Flash memory
  • USB-C connector, keeps it up to date, easier to use
  • The castellated module allows soldering directly to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
  • 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support
