Pi Cap Module to suit Raspberry Pi

SKU: Z6430
The Pi Cap is an addon board for the Raspberry Pi A+, B+, 2 B, 3 B and Zero. It features a dedicated capacitive sensing IC, 3.5mm stereo audio output, push switch, RGB LED and prototyping area
Save $5.45 $30.00 $35.45

All Prices Shown are (ex GST)
Bulk Pricing
ea
$30.00 $35.45
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

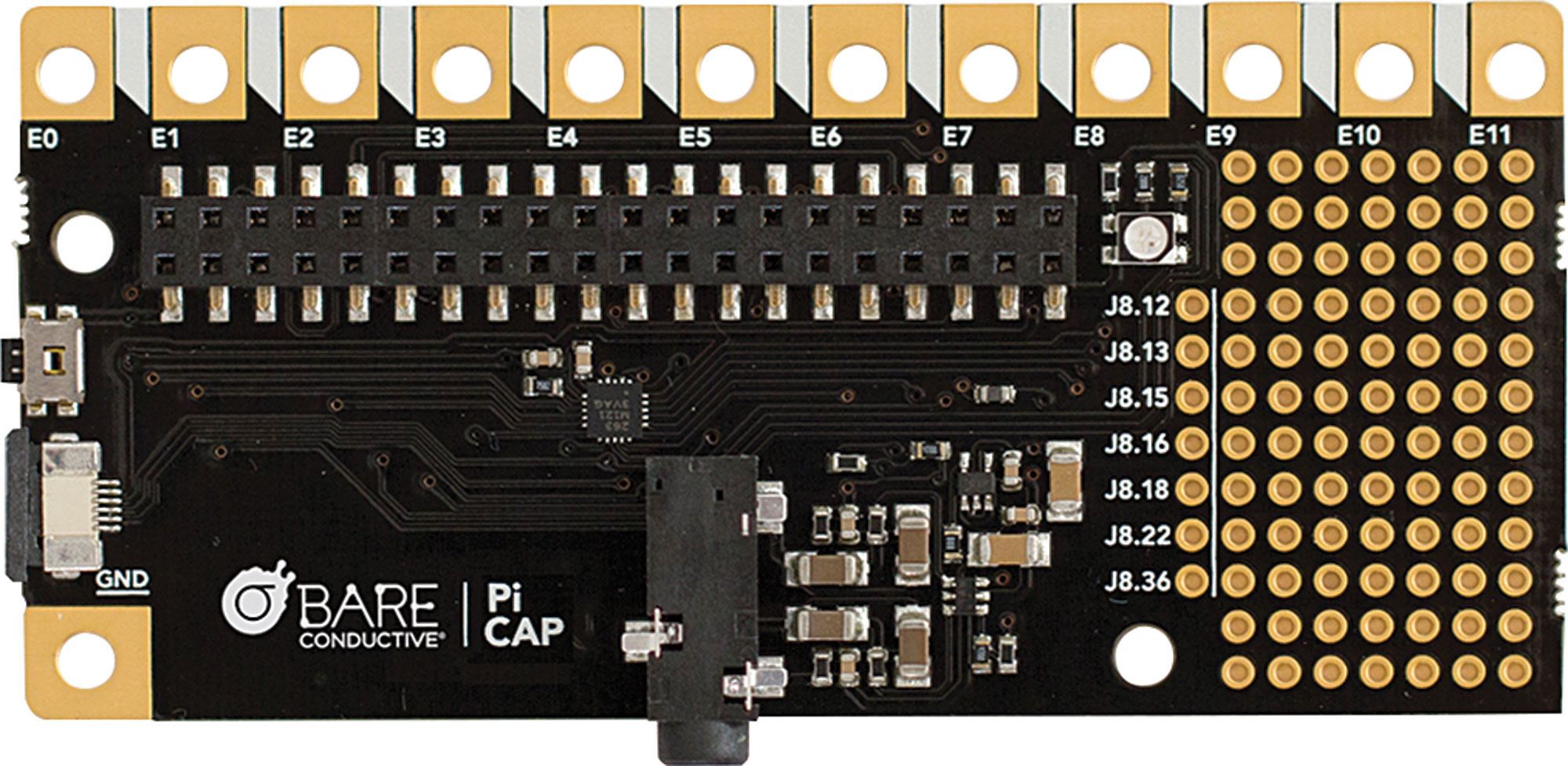

The Pi Cap is an add-on board for the Raspberry Pi A+, B+, 2 B, 3 B and Zero. It features a dedicated capacitive sensing IC, 3.5mm stereo audio output, push switch, RGB LED and prototyping area.

Please Note: The Raspberry Pi has been used for illustration purposes and is not included.

Specifications

Touch IC: Resurgent Semiconductor MPR121

  • Audio Output: 15mW into 32Ω via 3.5mm stereo socket
  • Input Voltage: 3.3V (via 40-way Raspberry Pi GPIO connector)
  • Input Current: 17mA idle, 36mA with all features in concurrent use.
  • Capacitive Touch Electrodes: 12 (of which 8 can be configured as 3.3V digital I/O)
  • Digital I/O Pins: 7, brought out from 40-way Raspberry Pi GPIO connector – pins 12, 13, 15, 16, 18, 22, 36
  • Push Switch: Active low momentary push switch connected to pin 7 on the 40-way Raspberry Pi GPIO connector (requires the Pi''s onboard pull up resistor to be enabled in software)
  • Active low, red connected to J8.31 (5mA when on), green to J8.29 (1mA when on), blue to J8.37 (4mA when on)
  • Prototyping Area: 84 pads (7 x 12) with 1mm diameter drills spaced 2.54mm apart.
  • Dimensions: 85 x 40 x 7mm
