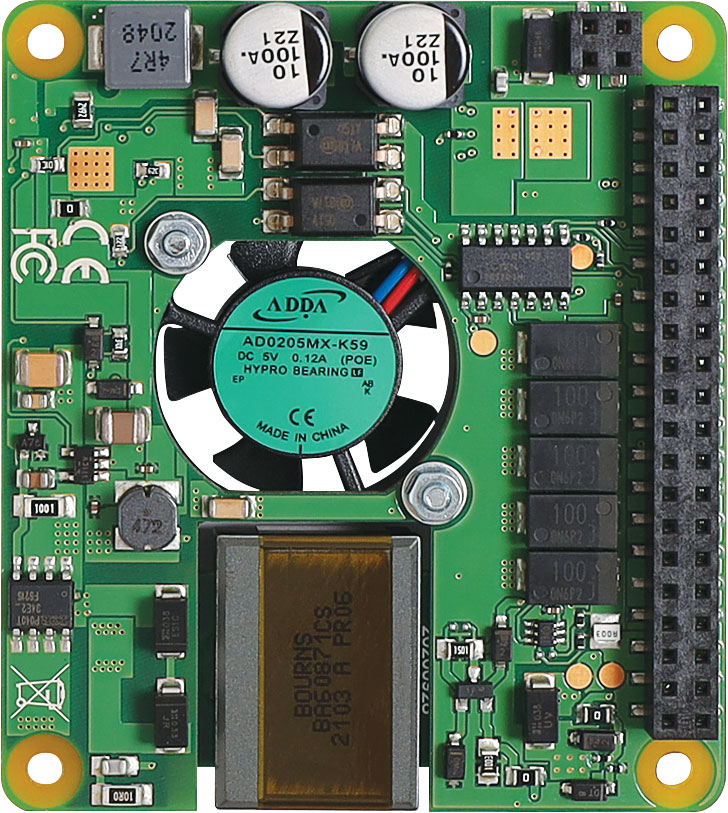

POE Hat To Suit Raspberry Pi 4B/3B+

Be the first to review this product
Enables simultaneous communication with the LAN network and power supply of the Raspberry Pi board.
SKU: Z6425A
$44.55
Per ea
QuantityPrice
ea$44.55

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Use this Raspberry Pi HAT to add PoE+ capability to your Raspberry Pi''s Ethernet port. Compatible with Raspberry Pi 4 and Raspberry Pi 3B+. Power-sourcing equipment is required. Perfect for remote IoT installations of Raspberry Pi boards including digital signage, automation and hobbyist projects.

Features

  • Fan Control
  • Built in current sensor
  • Built in brushless fan
  • Fully isolated power supply
  • 4 x spacers included

Specifications

Standard: IEEE 802.3at-2009 PoE

  • Input voltage: 37-57 V DC, Class 4 device
  • Output power: 5 V DC/5 A
  • Cooling: 25 mm × 25 mm brushless fan delivering 2.2 CFM for processor cooling
  • Features: fully isolated switched-mode power supply; fan control
  • Operating temperature: 0 °C to +50 °C
  • Dimensions: 65 x 56.5 mm

12 Months

We Offer 12 Months for this product
