12MP Camera Module to suit Raspberry Pi

Manufacturer: Raspberry Pi
SKU: Z6423
The latest Raspberry Pi camera now with support for C/CS mount lenses so you can set your camera to whichever focal length you desire. 12.3 megapixel Sony® sensor. Ideal for home surveillance and monitoring projects.
$95.91

All Prices Shown are (ex GST)

Bulk Pricing
ea $95.91
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

The Raspberry Pi High Quality Camera is the latest camera accessory from Raspberry Pi. It offers higher resolution (12 megapixels, compared to 8 megapixels), and sensitivity (approximately 50% greater area per pixel for improved low-light performance) than the existing Camera Module v2, and is designed to work with interchangeable lenses in both C- and CS-mount form factors. Other lens form factors can be accommodated using third-party lens adapters.

The High Quality Camera provides an alternative to the Camera Module v2 for industrial and consumer applications, including security cameras, which require the highest levels of visual fidelity and/or integration with specialist optics. It is compatible with all models of Raspberry Pi computer from Raspberry Pi 1 Model B onwards, using the latest software release from raspberry pi.

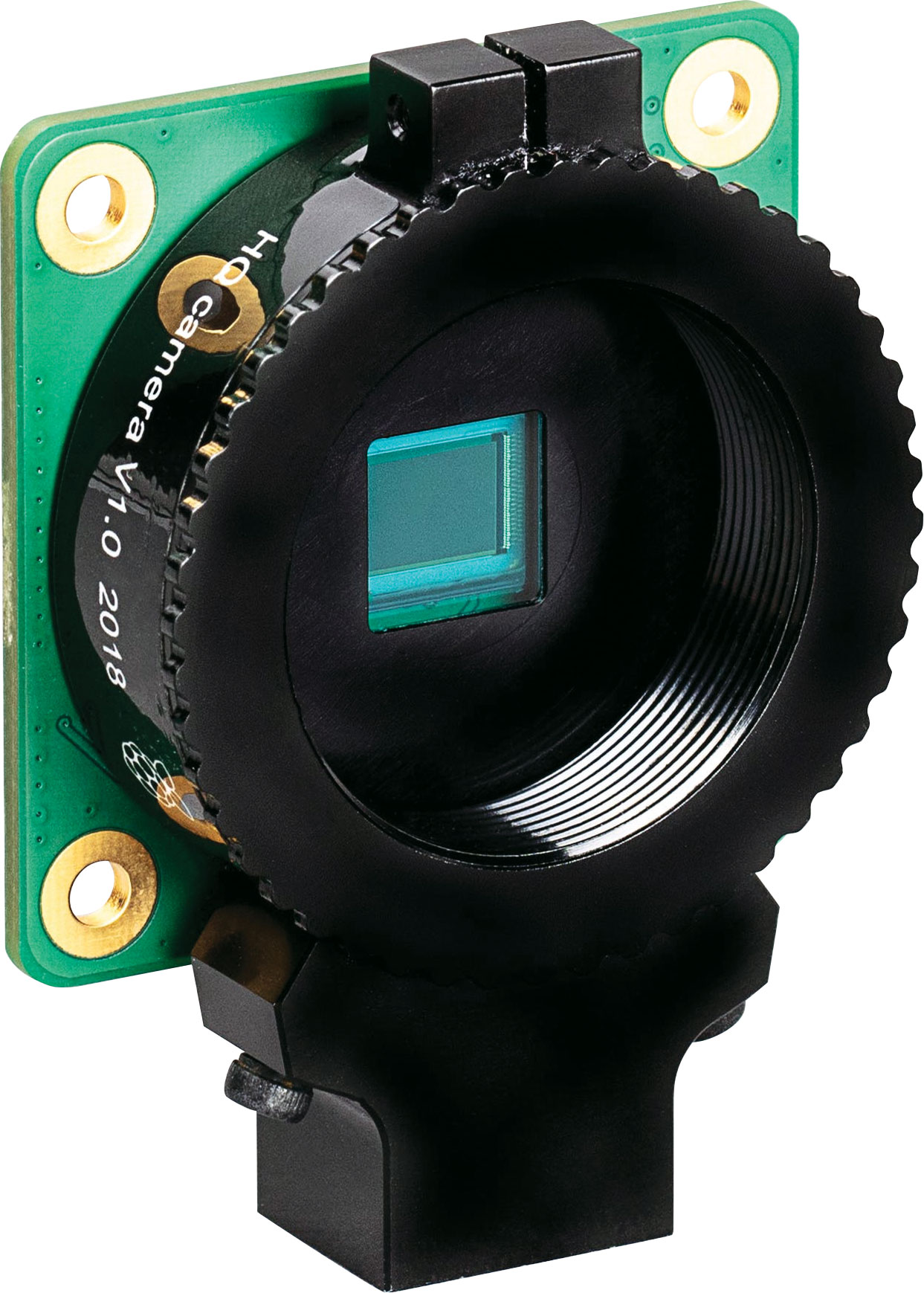

The package comprises a circuit board carrying a Sony IMX477 sensor, an FPC cable for connection to a Raspberry Pi computer, a milled aluminium lens mount with integrated tripod mount and focus adjustment ring, and a C- to CS-mount adapter.

NOTE: LENS NOT INCLUDED - PHOTO FOR ILLUSTRATION PURPOSES

Specifications

Sony IMX477R stacked, back-illuminated sensor, 12.3 megapixels, 7.9 mm sensor diagonal, 1.55 µm × 1.55 µm pixel size

  • Ouput: RAW12/10/8, COMP8
  • Back focus: Adjustable (12.5 mm–22.4 mm)
  • Lens standards: C-mount, CS-mount (C-CS adapter included)
  • IR cut filter: Integrated
  • Ribbon cable length: 200 mm
  • Tripod mount: 1/4”-20

Warranty & Returns

12 Months

We Offer 12 Months for this product
