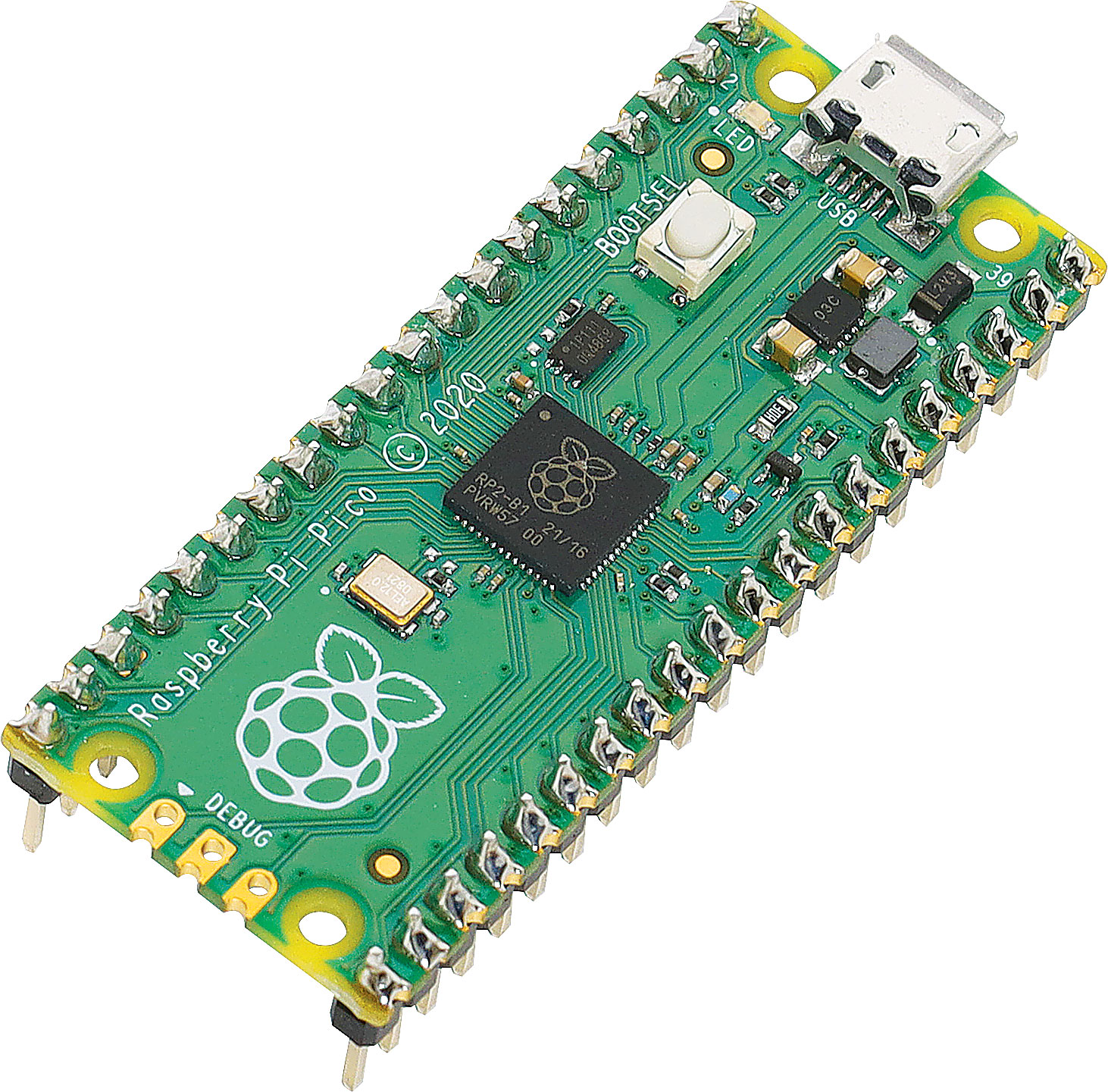

Raspberry Pi Pico RP2040 Development Board With Headers

Manufacturer: Raspberry Pi
Be the first to review this product
Raspberry Pi Pico is a tiny, fast, and versatile board built using RP2040, a brand new microcontroller chip designed by Raspberry Pi in the UK. From controlling appliances to operating a light display, Raspberry Pi Pico puts the technology that underpins countless everyday operations into your hands.
SKU: Z6421A
$10.45
Per ea
Quantity Price
ea $10.45

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Raspberry Pi Pico is a tiny, fast, and versatile board built using RP2040, a brand new microcontroller chip designed by Raspberry Pi in the UK. From controlling appliances to operating a light display, Raspberry Pi Pico puts the technology that underpins countless everyday operations into your hands. Programmable in C and MicroPython, Pico is adaptable to a vast range of applications and skill levels, and getting started is as easy as dragging and dropping a file.

More experienced users can take advantage of Raspberry Pi Pico’s rich peripheral set, including SPI, I2C, and eight Programmable I/O (PIO) state machines for custom peripheral support.

The Pico features a dual-core Arm Cortex-M0+ processor with 264KB internal RAM and support for up to 16MB of off-chip Flash. It features a 2MB on-board QSPI Flash. A wide range of flexible I/O options includes I2C, SPI, and — uniquely — Programmable I/O (PIO). These support endless possible applications for this small and affordable package.

Whether you prefer MicroPython or C++, here are some handy links to get you started with your Raspberry Pi Pico:

Raspberry Pi overview page
MicroPython SDK / Guide
C/C++ SDK / Guide
Raspberry Pi Pico Datasheet

Features

  • Ultra compact form factor
  • Dual core ARM Cortex M0+ processor
  • Two SPI controllers
  • Two I2C controllers
  • 16 PWM channels
  • 26 multifunction GPIO pins
  • Three analogue inputs
  • On board USB controller
  • In-built temperature sensor
  • Castellated module allows soldering direct to carrier boards
  • Drag-and-drop programming using mass storage over USB
  • Low-power sleep and dormant modes
  • Accurate on-chip clock
  • Accelerated integer and floating-point libraries on-chip
  • Includes headers





Specifications

Form Factor: 21 mm × 51 mm

  • RP2040 microcontroller chip designed by Raspberry Pi in the UK
  • Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz
  • 264KB on-chip SRAM
  • 2MB on-board QSPI Flash
  • 26 multifunction GPIO pins, including 3 analogue inputs
  • 2 × UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels
  • 1 × USB 1.1 controller and PHY, with host and device support
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support
  • Supported Input Power: 1.8–5.5V DC
  • Operating Temperature: -20°C to +85°C
