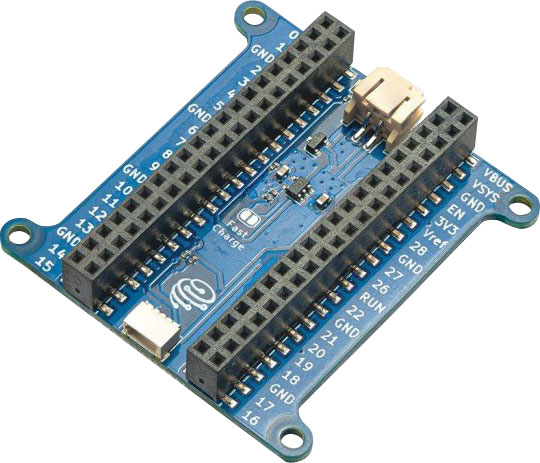

PiicoDev Expansion Board for Raspberry Pi Pico

Be the first to review this product
The PiicoDev Expansion Board for Raspberry Pi Pico is a great way to start experimenting with Raspberry Pi Pico/RP2040. Use the on-board PiicoDev connector to quickly and easily connect with the PiicoDev family of sensor modules without soldering.
SKU: Z6419
$7.23
Per ea
QuantityPrice
ea$7.23

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The PiicoDev Expansion Board for Raspberry Pi Pico is a great way to start experimenting with Raspberry Pi Pico/RP2040. Use the on-board PiicoDev connector to quickly and easily connect with the PiicoDev family of sensor modules without soldering. The Raspberry Pi Pico is sold separately - see accessories listed below.

NOTE: The PiicoDev is not supplied with header pins for the PICO itself. For suitable header pins, please see our P5430 40 Way Header Strip. This is easily snapped in half to form 2 x 20 pin lengths for your PICO.

Features

  • Breaks out each Pico pin, with handy labels
  • Take your project on the go with on-board LiPo battery charging.
  • PiicoDev connector, compatible with Qwiic and STEMMA QT (3.3V only)

Specifications

Dimensions: 51x51mm

  • Mounting Holes: M2.5
  • Charge Current: approx 220mA / 440mA (when Fast Charge jumper is soldered)
  • PiicoDev connector: I2C0 (SCL:Pin 9, SDA:Pin 8)
  • PiicoDev connector pinout: 1 GND, 2 3.3V, 3 SDA, 4 SCL

12 Months

We Offer 12 Months for this product
