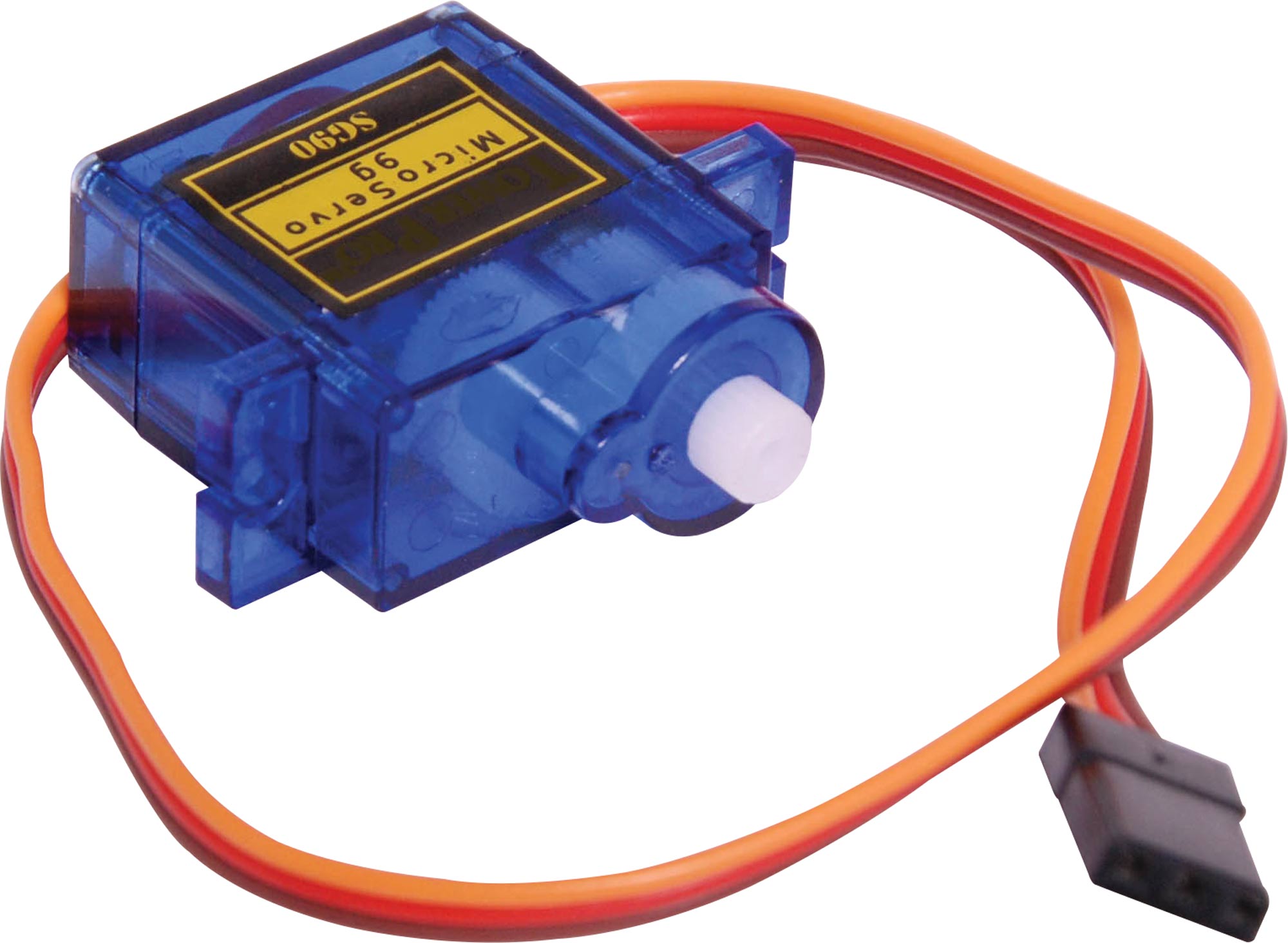

9g 180º 2 x 90º Plastic Servo for Arduino

This tiny and lightweight servo can rotate approximately 180 degrees (90 in each direction), and works just like the standard servo. You can use any servo code, hardware or library to control these servos.
SKU: Z6392
$9.05
Per ea
QuantityPrice
ea$9.05
4+$8.14
6+$7.23

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This tiny and lightweight servo can rotate approximately 180° (90° in each direction), and works just like the standard servo. You can use any servo code, hardware or library to control these servos. Great for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places.

Note: Comes supplied with 3 sets of armatures and mounting hardware.

Specifications

Weight: 9 g

  • Dimension: 22.2 x 11.8 x 31 mm approx.
  • Stall Torque: 1.8 kgf·cm
  • Operating Speed: 0.1 s/60 degree
  • Operating Voltage: 4.8 V (~5V)
  • Dead Band Width: 10 µs
  • Temperature Range: 0ºC – 55ºC

12 Months

We Offer 12 Months for this product
