USB Type C Lithium Charger Module

SKU: Z6388A
Provides a 1A charging current to a single lithium cell from a 5V DC input.
$9.05

All Prices Shown are (ex GST)
Bulk Pricing
ea $9.05
2+ $8.14
4+ $7.23
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

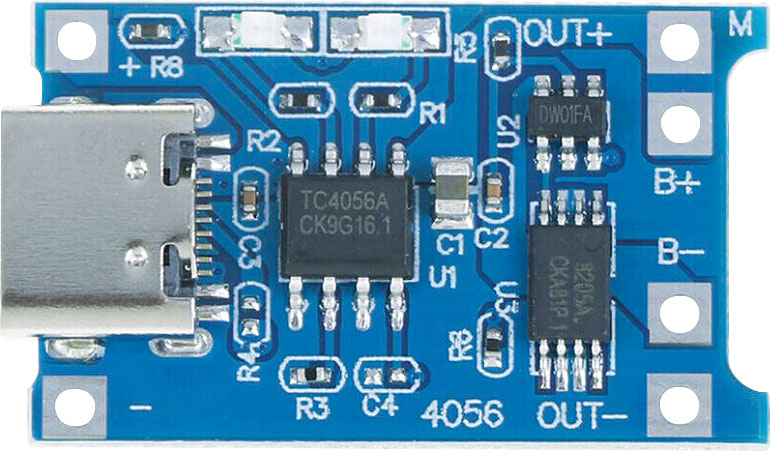

Provides a 1A charging current to a single lithium cell from a 5V DC input and can be powered by USB (Type C socket provided). LED indicators on board.

Please Note: This module is NOT reverse polarity protected.

Specifications

Module Type: Type C USB

  • Charge Mode: Linear Charging
  • Charge Current: 1A
  • Charge Precision: 1.5 %
  • Input Voltage: 4.5V ~ 5.5V
  • Full Charged Voltage: 4.2V
  • Led Indicator: Red is charging, Blue is fully charged
  • Input Interface: Type C USB
  • Work Temperature: -10?~ 85?
  • Size: 28 x 17.5 x 4mm
  • Weight: 1.8g

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
