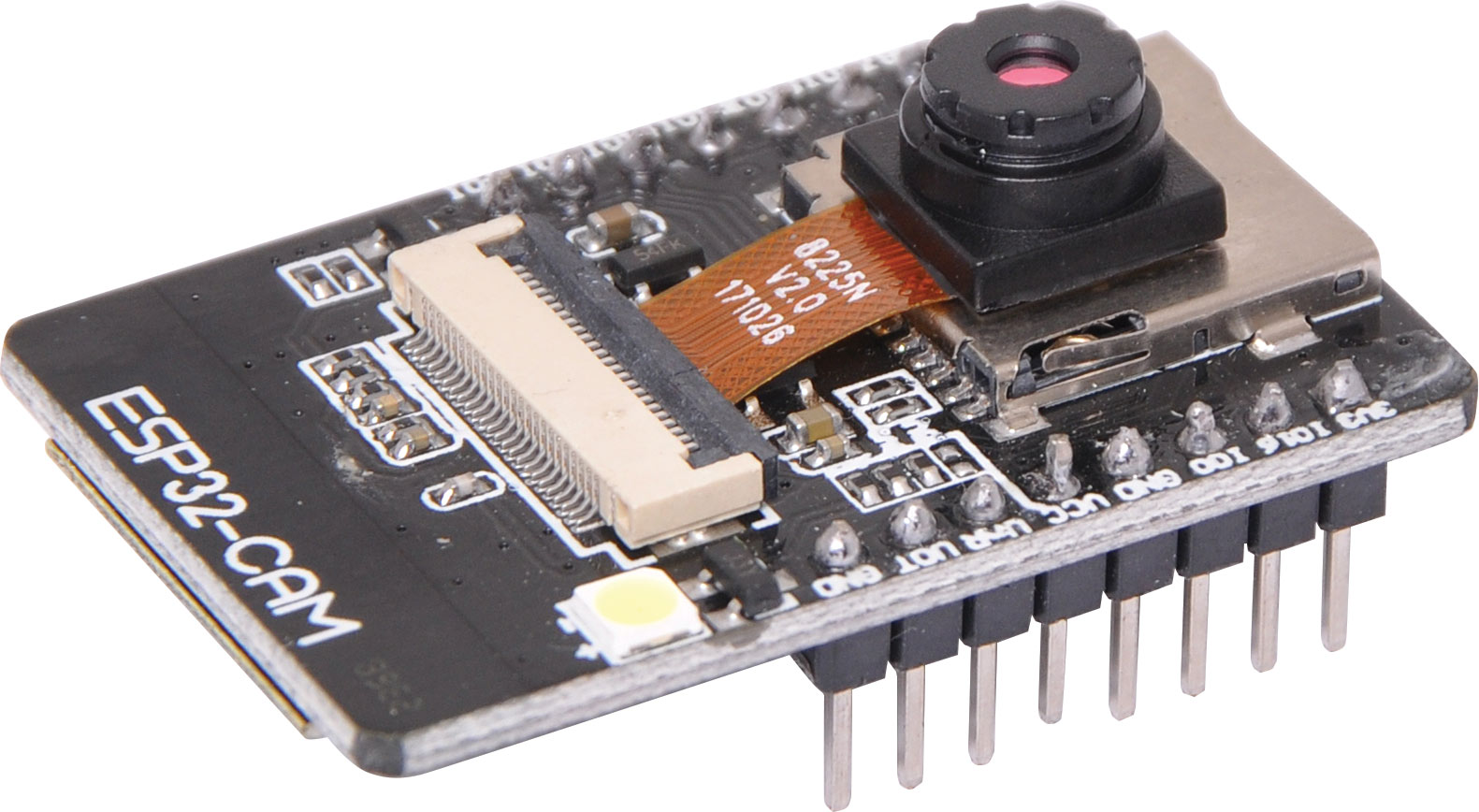

ESP32 WiFi-Bluetooth Camera Module Development Board

SKU: Z6387
A WIFI+ bluetooth dual-mode development board that uses PCB on-board antennas and cores based on ESP32 chips. It can work independently as a minimum system.
$29.95

All Prices Shown are (ex GST)
Bulk Pricing
ea $29.95
2+ $26.95
4+ $24.50
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

An Arduino compatible ESP32 WiFi-Bluetooth camera module development board that uses PCB on-board antennas and cores based on ESP32 chips. It can work independently as a minimum system. The board integrates WiFi, traditional bluetooth and BLE Beacon, with 2 high-performance 32-bit LX6 CPUs, 7-stage pipeline architecture, main frequency adjustment range 80MHz to 240MHz, on-chip sensor, Hall sensor, temperature sensor, etc. It''s fully compliant with WiFi 802.11b/g/n/e/i and bluetooth 4.2 standards, it can be used as a master mode to build an independent network controller, or as a slave to other host MCUs to add networking capabilities to existing devices. The board can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is also an ideal solution for IoT applications.

Features

  • Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
  • Low-power dual-core 32-bit CPU for application processors
  • Up to 240MHz, up to 600 DMIPS
  • Built-in 520 KB SRAM, external 4M PSRAM
  • Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC
  • Supports OV2640 and OV7670 cameras with built-in flash
  • Supports for images WiFI upload
  • Supports TF card
  • Supports multiple sleep modes
  • Embedded Lwip and FreeRTOS
  • Supports STA/AP/STA+AP working mode
  • Supports Smart Config/AirKiss One-click distribution network
  • Supports for serial local upgrade and remote firmware upgrade (FOTA)
  • Supports secondary development

Specifications

Module model: ESP32-CAM

  • Package: DIP-16
  • Size: 27 x 40.5 x 4.5(±0.2)mm
  • SPI Flash: default 32Mbit
  • RAM: internal 520KB + external 4M PSRAM
  • Bluetooth: 4.2BR/EDR and BLE standards
  • Wi-Fi: 802.11 b/g/n/e/i
  • Support interface: UART, SPI, I2C, PWM
  • Support TF card: Maximum support 4G
  • IO port: 9
  • Serial port rate: default 115200 bps
  • Image output format: JPEG (only supported by OV2640), BMP, GRAYSCALE
  • Spectrum range: 2412 ~ 2484MHz
  • Antenna form: onboard PCB antenna , gain 2dBi
  • Security: WPA/WPA2/WPA2-Enterprise/WPS
  • Power supply range: 5V
  • Operating temperature: -20 °C ~ 85 °C
  • Storage environment: -40 °C ~ 90 °C, < 90%RH

Transmit Power:

  • 802.11b: 17±2 dBm (@11Mbps)
  • 802.11g: 14±2 dBm (@54Mbps)
  • 802.11n: 13±2 dBm (@MCS7)

Receiving Sensitivity:

  • CCK, 1 Mbps : -90dBm, CCK
  • 11 Mbps: -85dBm
  • 6 Mbps (1/2 BPSK): -88dBm
  • 54 Mbps (3/4 64-QAM): -70dBm
  • MCS7 (65 Mbps, 72.2 Mbps): -67dBm

Power Consumption:

  • Turn off the flash: 180mA@5V
  • Turn on the flash and adjust the brightness to the maximum: 310mA@5V
  • Deep-sleep: The lowest power consumption can reach 6mA@5V
  • Moderm-sleep: up to 20mA@5V
  • Light-sleep: up to 6.7mA@5V
