ESP32 WiFi-Bluetooth Module & Interface Board

Be the first to review this product
This board features a powerful ESP32 dual core microcontroller that has wifi and bluetooth. This allows it to have the ability to be programmed with the Arduino IDE.
SKU: Z6385A
$29.95
Per ea
QuantityPrice
ea$29.95
2+$27.05
4+$24.09

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

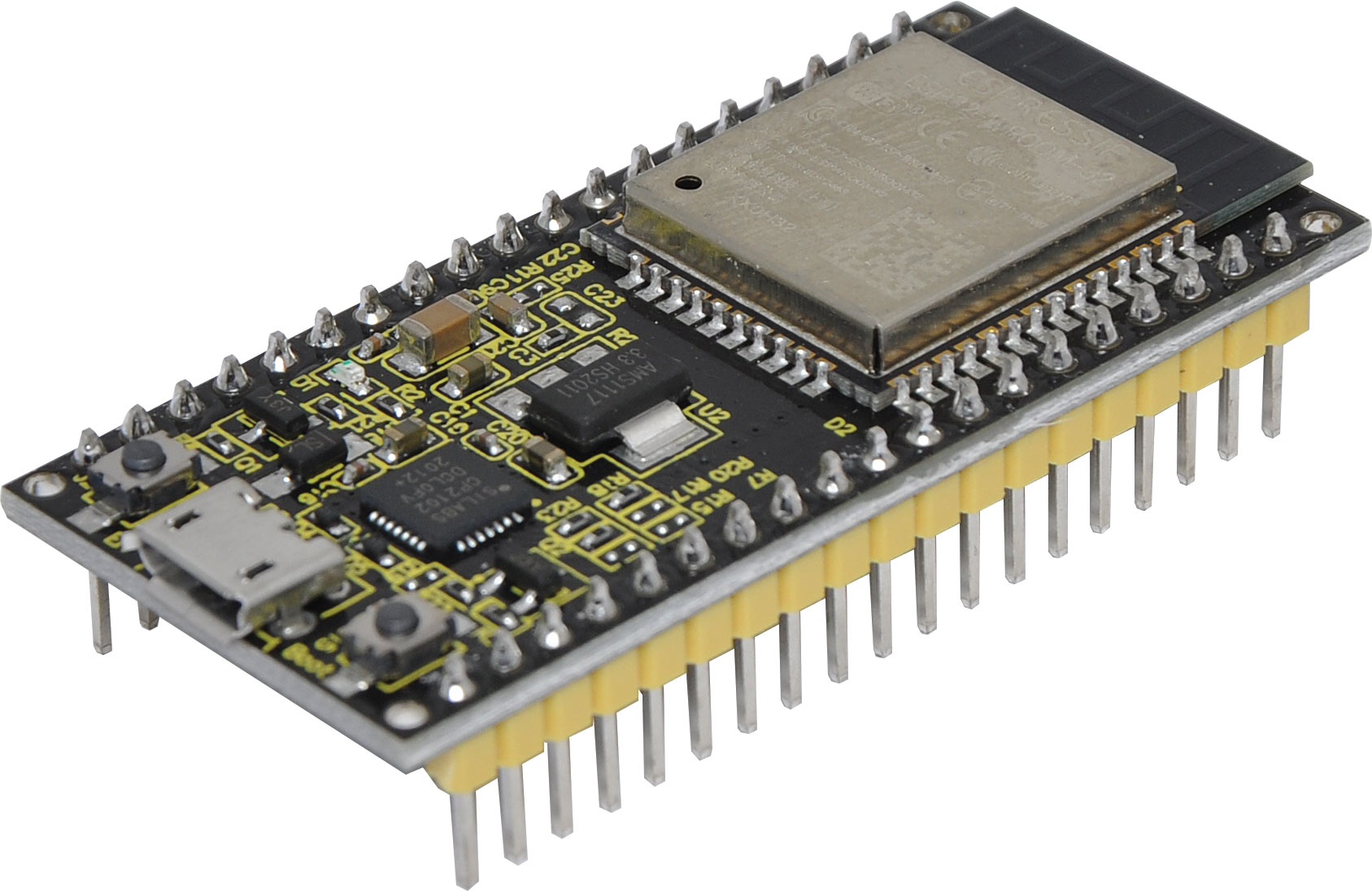

This ESP32 core board is a mini development board based on the ESP-WROOM-32 module with in-built bluetooth and wi-fi to make it easy to connect to other devices and networks. Great for small IoT projects.

The module is the industries leading integrated WiFi + Bluetooth solution with less than 10 external components. It integrates antenna switch, RF balun, power amplifiers, low noise amplifiers, filters and power management modules. At the same time, it also integrates with TSMC''s low-power 40nm technology, so that power performance and RF performance are safe and reliable, easy to expand to a variety of applications. Size: 55 x 26mm

Specifications

Microcontroller: ESP-WROOM-32 module

  • USB to Serial Port Chip: CP2102-GMR
  • Operating Voltage: DC 5V
  • Operating Current: 80mA (average)
  • Current Supply: 500mA (Minimum)
  • Operating Temperature Range: -40? ~ +85?
  • WiFi mode: Station/SoftAP/SoftAP+Station/P2P
  • WiFi protocol: 802.11 b/g/n/e/i (802.11n, speed up to 150 Mbps
  • WiFi frequency range: 2.4 GHz ~ 2.5 GHz
  • Bluetooth protocol: conform to Bluetooth v4.2 BR/EDR and BLE standards
  • Dimensions: 55mm*26mm*13mm
  • Weight: 9.3g

12 Months

We Offer 12 Months for this product
