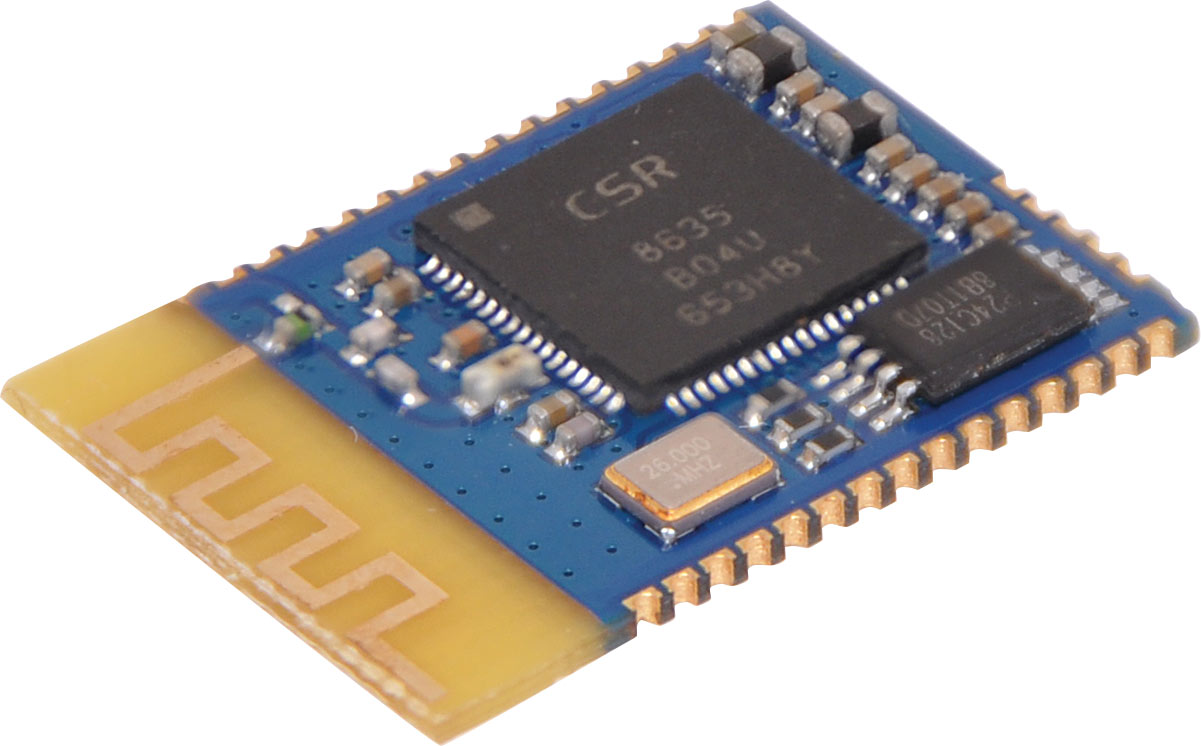

CSR8635 Bluetooth V4.0 Module

SKU: Z6383
High integration, small size, superior sound quality and other characteristics, external components can be achieved only with a few of its powerful features.
$18.14

All Prices Shown are (ex GST)
Bulk Pricing
ea $18.14
2+ $16.32
4+ $14.50
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This Bluetooth V4.0 Module can be used to build wireless audio streaming into an OEM product or other audio project. It features A2DP, AVRCP remote control protocol transmission and is suitable for connection to any Bluetooth equipped device such as smartphones, tablets and other bluetooth audio adaptors. It receives high quality wireless stereo audio stream and enables remote control of the audio device it is built into. The pinouts and module dimensions are compatible with BC05-B allowing upgrade of existing modules without any changes required. It is equipped with a built in antenna.

Applications
Stereo speakers
Speakerphones
1-mic stereo headset or headphones
Handsfree car kits
The enhanced Kalimba DSP coprocessor with 80MIPS supports enhanced audio and DSP applications.
The integrated audio codec supports stereo input and output, as well as a variety of audio standards.

Features

  • Stereo codec with 1 microphone input
  • Internal ROM, serial flash memory and EEPROM
  • interfaces High-performance Stereo codec
  • Radio includes integrated balun with RF
  • performance of 8dBm transmit power and -89dBm receiver
  • sensitivity AVRCP v1.4
  • Multipoint support for A2DP connection to 2 A2DP sources for music playback
  • Secure simple pairing, CSR’s proximity pairing and CSR’s proximity connections
  • Stereo line-inBluetooth low energy
  • Bluetooth Radio/speaker Bluetooth Transmitter
  • Bluetooth Receiver Bluetooth v4.0 specification support
  • A2DP v1.2 AVRCP v1.4
  • HFP v1.6
  • HSP v1.2
  • DI v1.3

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
