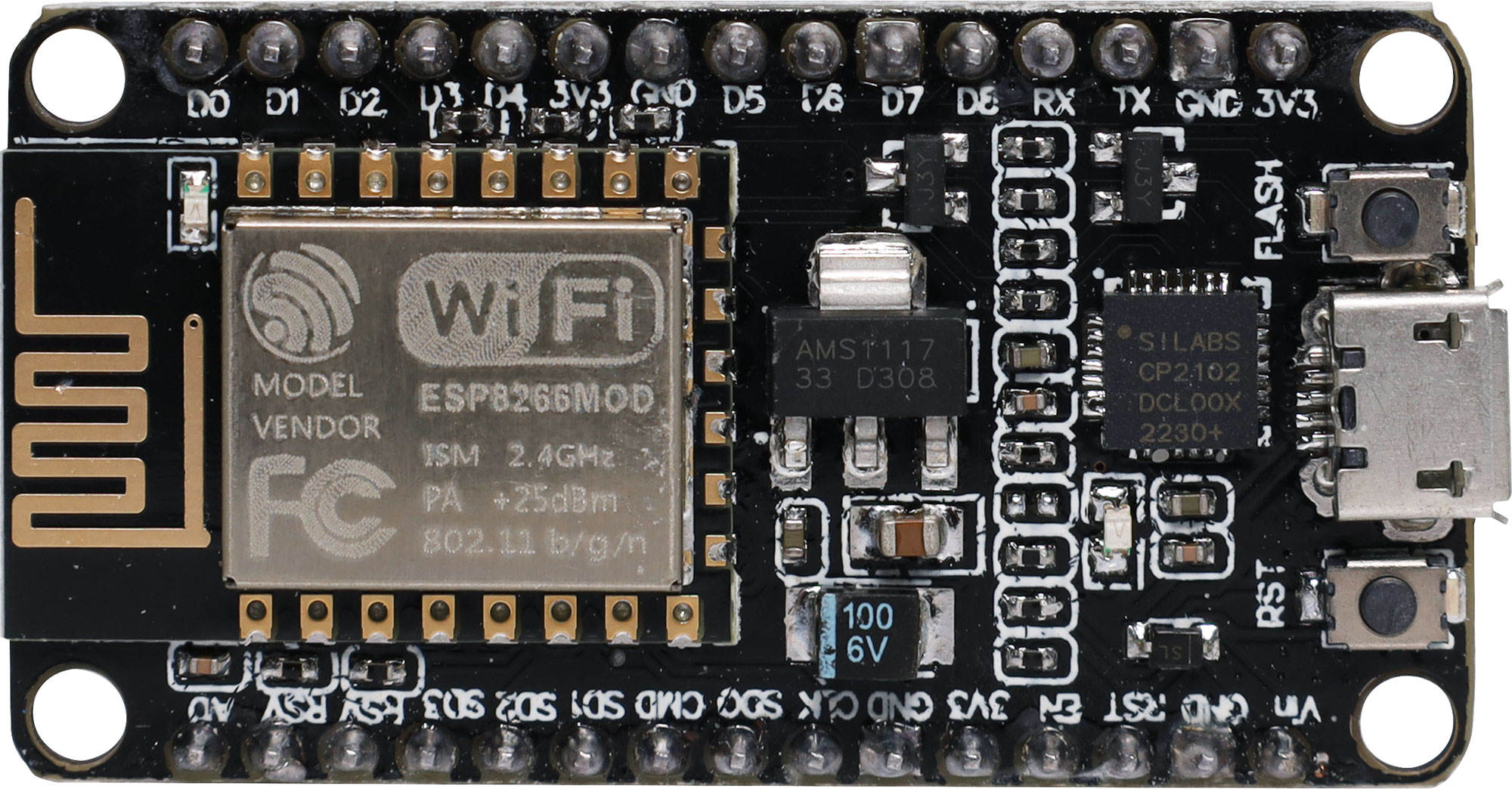

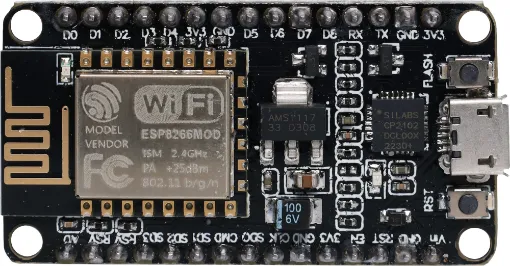

WiFi ESP8266-ESP-12F Development Board

Be the first to review this product
An Arduino compatible development board featuring WiFi making it ideal for plug-and-play projects.The board also features its GPIO broken out, a full USB-serial interface, NodeMCU pre-flashed and a power supply all on the one breadboard-friendly package.
SKU: Z6381A
$19.95
Per ea
Quantity Price
ea $19.95
2+ $17.95
4+ $15.95

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

An Arduino compatible development board featuring WiFi making it ideal for plug-and-play projects.The board also features its GPIO broken out, a full USB-serial interface, NodeMCU pre-flashed and a power supply all on the one breadboard-friendly package. The board utilises a CP2102 chip and does not include the VU (VUSB) pin.

Features:

  • Adopts industrial chip esp8266, esp-12f module with metal shielding Case, strong Anti-slip potential;
  • Used as an independent commission for the development of esp8266, uploading an official to the team Firmware, open source nodemcu, etc.
  • Can also be used as an independent development board for Arduino, use the same as Arduino Development Board.

Specifications

Supports wireless 802.11 B / G / N standard;

  • Supports two modes of operation sta / AP;
  • Built-in tcp / ip stack, can configure one socket;
  • Supports the TCP / UDP server and client standard;
  • The serial port''s serial port transmission speed can be:
  • 1200/2400/4800/9600/19200/38400/57600/74800 / 115,200 bps;
  • Serial port data: 5/6/7/8 bit;
  • Serial port-even check: no;
  • Serial port of the stop bit: 1/2 bit;
  • 1 Reset button;
  • The key button also has a configuration function;
  • Wi-Fi Operating current: Continuous transmission: ≈70ma
  • (200mA max), stand from Mode: <200uA;
  • Operating voltage: DC 3.3V
  • Wireless transmission speed: 110-460800bps;
  • Operating temperature: -40 ° C ~ + 125 ° C
