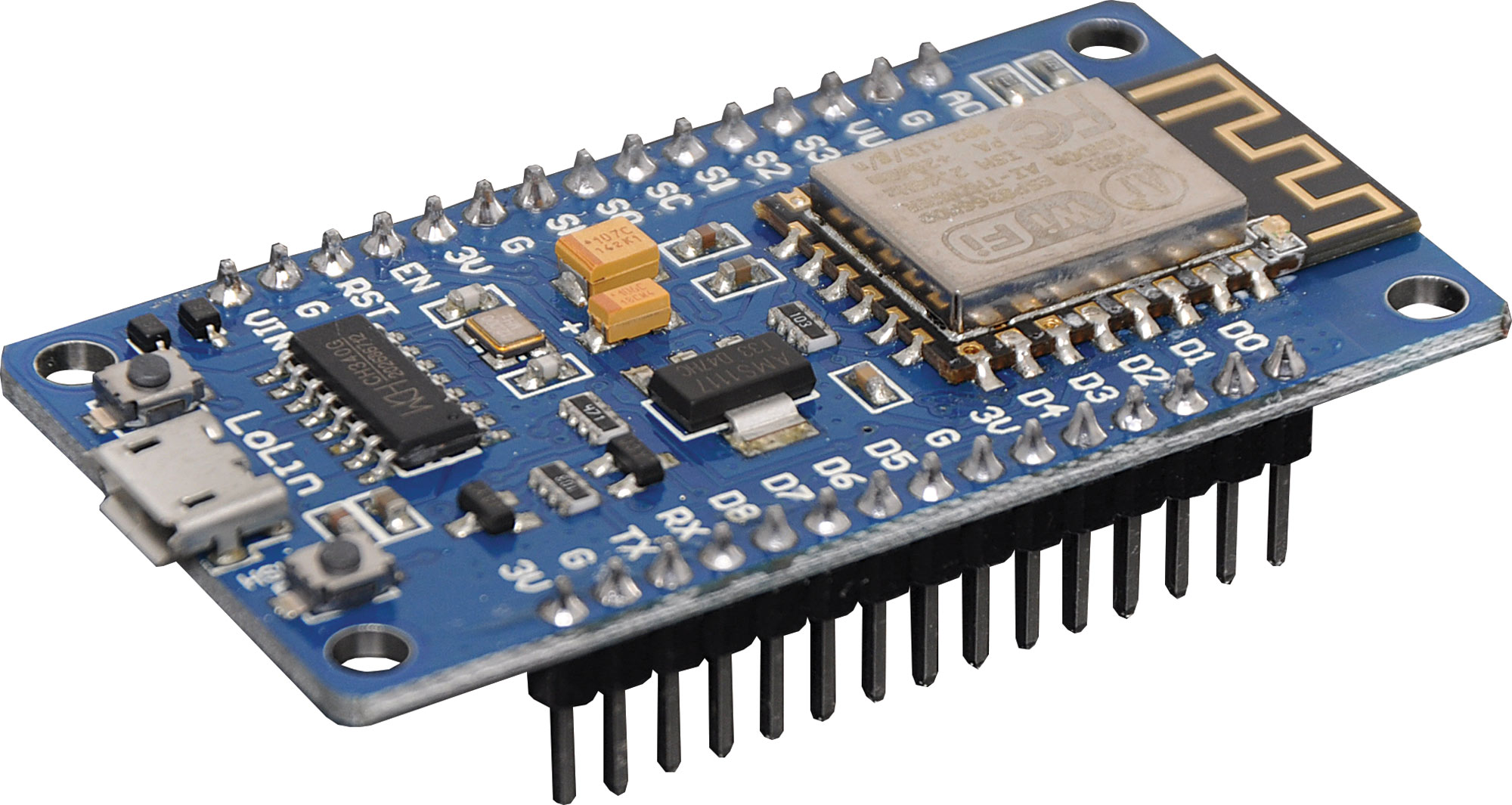

WiFi ESP8266-ESP-12F Development Board

Specifications

Supports wireless 802.11 B / G / N standard;

• Supports two modes of operation sta / AP;
• Built-in tcp / ip stack, can configure one socket;
• Supports the TCP / UDP server and client standard;
• The serial port''s serial port transmission speed can be:
• 1200/2400/4800/9600/19200/38400/57600/74800 / 115,200 bps;
• Serial port data: 5/6/7/8 bit;
• Serial port-even check: no;
• Serial port of the stop bit: 1/2 bit;
• 1 Reset button;
• The key button also has a configuration function;
• Wi-Fi Operating current: Continuous transmission: ≈70ma
• (200mA max), stand from Mode: <200uA;
• Operating voltage: DC 3.3V
• Wireless transmission speed: 110-460800bps;
• Operating temperature: -40 ° C ~ + 125 ° C
