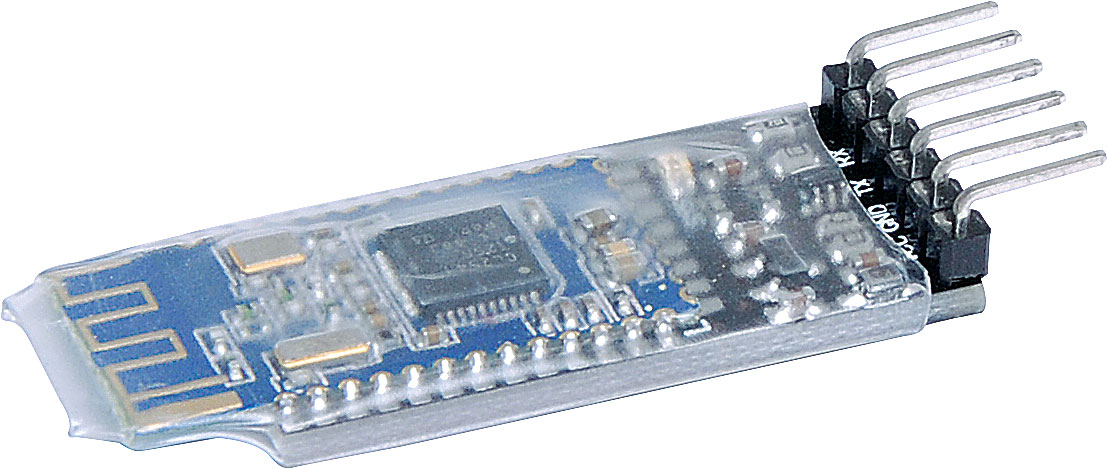

Bluetooth 4.0 Module

SKU: Z6365
This small size Bluetooth 4.0 TTL transceiver module allows your project to communicate with other bluetooth equipped devices. Can be set as slave or master. Low standby current. 60m range. Inbuilt antenna. 3.6-6V input. 45L x 17Wmm.
$27.23

All Prices Shown are (ex GST)
Bulk Pricing
ea $27.23
2+ $24.50
4+ $21.77
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This small size Bluetooth 4.0 TTL transceiver module allows your project to communicate with other bluetooth equipped devices. Can be set as slave or master. Low standby current. 110m range. Integrated chip antenna. Size: 27L x 13W x 2H mm.

Application Fields
Cable replacement
Point of sales systems
Barcode readers and pay terminals
Telemetry and machine to machine devices
Logistics and transportation systems
Automotive inspection and measurement systems
Medical systems
Fitness and sports telemetry devices
PDA and other portable terminals
PCs and laptop OBD

Features

  • Based on TI CC2541 chipset
  • Bluetooth class 2
  • Industrial level SPP Bluetooth module
  • Integrated chip antenna
  • Support for on board applications

Specifications

Size: 27L x 13W x 2H mm

  • Operating frequency: 2.4 GHz ISM band
  • Modulation method: GFSK (Gaussian Frequency Shift Keying)
  • Acuity: 84 DBM or less BER at 0.1%
  • Transfer rate: Asynchronous: 6 KBPS Synchronous: KBPS
  • Security features: Authentication and encryption
  • Support services: Central and Peripheral UUID FFE0, FFE1
  • Power consumption: automatic sleep mode, the standby current 400 ~ 1.5 mA, transfer 8.5 mA.
  • Power supply: + 3.3 VDC 50 ma
  • Output Power Class: Class 2
  • Operating Voltage: 3.3V
  • Host Interface: UART

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
