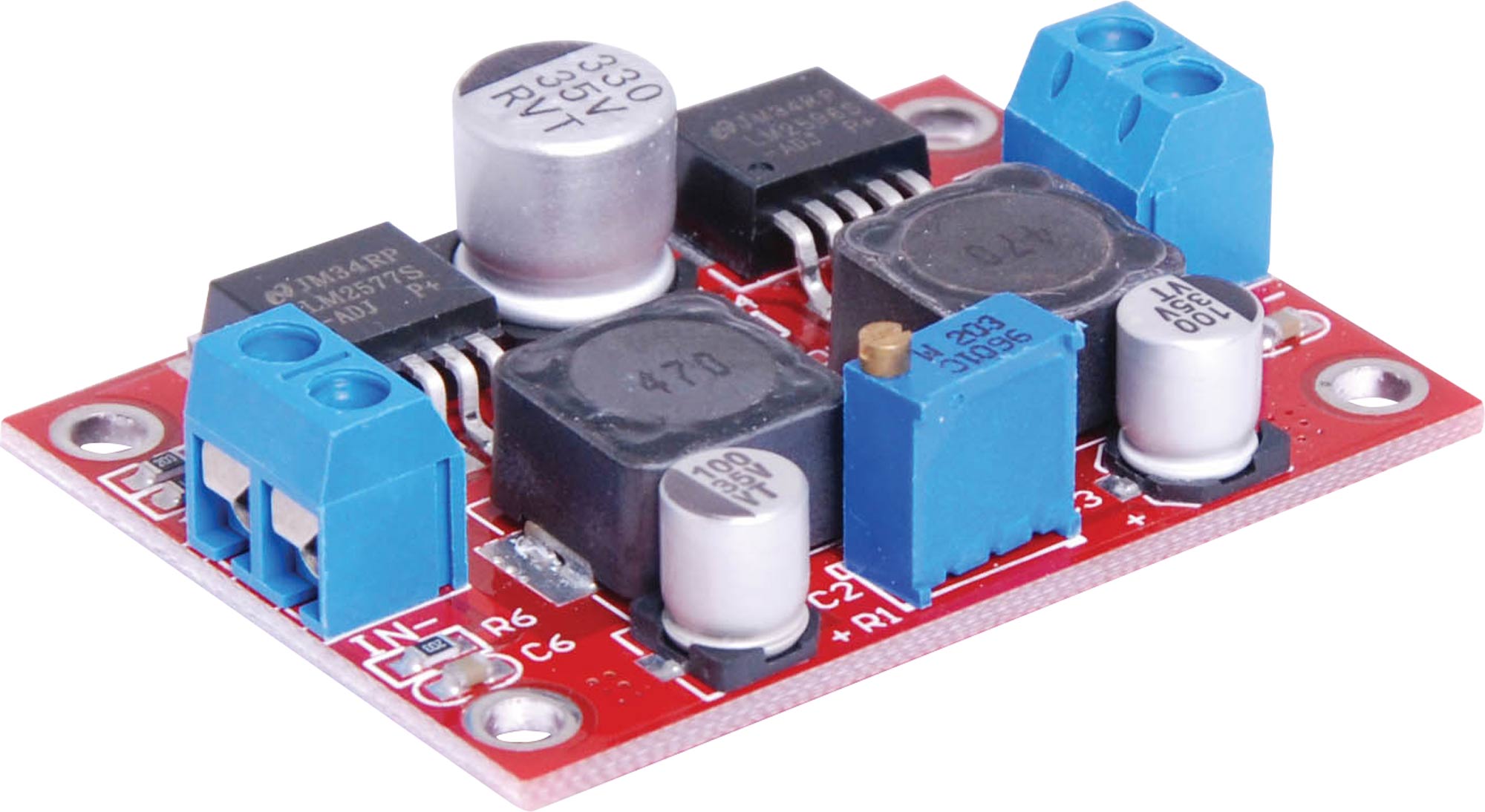

DC-DC Buck Boost Module 1A / 1.25V-26V DC

SKU: Z6337
Utilises the LM2596S and LM2577 to accept a 3.5-28V input and output 1.25-26V (adjustable) at a max current of 1A. Includes brass standoffs. Ideal for small projects where regulated power is required. Size:󈍕L x 38W x 21Hmm.
$18.14

All Prices Shown are (ex GST)
Bulk Pricing
ea $18.14
2+ $16.32
4+ $14.50
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A DC-DC buck module utilising the LM2596S and LM2577 to accept a 3.5-28V input and output 1.25-26V (adjustable) at a max current of 1A. Includes brass standoffs. Ideal for small projects where regulated power is required. Size: 53L x 38W x 21H mm.

ALWAYS check the output voltage with a multimeter prior to connecting your device to the output.

Specifications

Dual Chip: LM2577S + LM2596S

  • Size: 53x38x15mm

Boost Mode

  • Input Voltage: 3.5-28V
  • Output Voltage: 1.25V-26V
  • Note: The output voltage is not related to the input voltage (that is, input any value of 3.5V-28V, output any value of 1.25V-26V)

Buck Mode

  • Current Input Maximum: 3A.
  • Output Maximum: 3A.
  • Rated Input: 1A,
  • Rated Output: 1A
  • Note: The output voltage (any value between 1.25V-26V) is irrelevant to the input voltage (input 3.5V-28V arbitrary value), the module automatically lifts and drops.

Warranty & Returns

12 Months

We Offer 12 Months for this product
