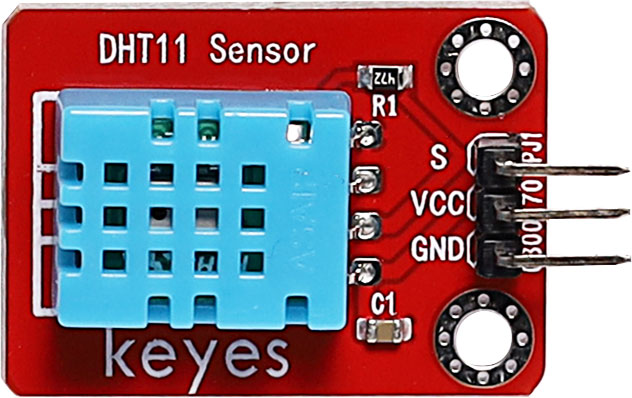

Temperature and Humidity Sensor Breakout for Arduino

Be the first to review this product
Voltage: 5V Temperature: -40~80'C, +/0.5 Humidity: 20~90%RH +/-2%RH Suitable for Arduino SCM A product for Arduino that works with official Arduino boards.
SKU: Z6320X
$11.36
Per ea
QuantityPrice
ea$11.36

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A compact 5V temperature and humidity sensor add-on for Arduino. A product for Arduino that works with official Arduino boards.

The device has an output calibrated digital signal. It utilizes exclusive digital-signal-collecting-technique and humidity sensing technology, assuring its reliability and stability. Its sensing elements are connected with 8-bit single-chip computer. Every sensor of this model is temperature compensated and calibrated in accurate calibration chamber and the calibration-coefficient is saved in type of programme in OTP memory, when the sensor is detecting, it will cite coefficient from memory. Small size & low consumption & long transmission distance (20m) enable device to be suited in all kinds of harsh application occasions. Single-row packaged with four pins, making the connection very convenient.

Features

  • Full range temperature compensated
  • Relative humidity and temperature measurement
  • Calibrated digital signal
  • Outstanding long-term stability
  • Extra components not needed
  • Long transmission distance
  • Low power consumption
  • 4 pins packaged and fully interchangeable

Specifications

Power supply: 3.3-6V DC

  • Output signal: Digital signal via single-bus
  • Sensing element: Polymer humidity capacitor & DS18B20 for detecting temperature
  • Measuring range: humidity 0-100%RH; temperature -40~125°C
  • Accuracy: humidity +-2%RH(Max +-5%RH); temperature +-0.2°C
  • Resolution or sensitivity: Humidity 0.1%RH; temperature 0.1°C
  • Repeatability: Humidity +-1%RH; Temperature +-0.2°C
  • Humidity hysteresis: +-0.3%RH
  • Long-term Stability: +-0.5%RH/year
  • Sensing period: Average: 2s
  • Interchangeability: Fully interchangeable

12 Months

We Offer 12 Months for this product
