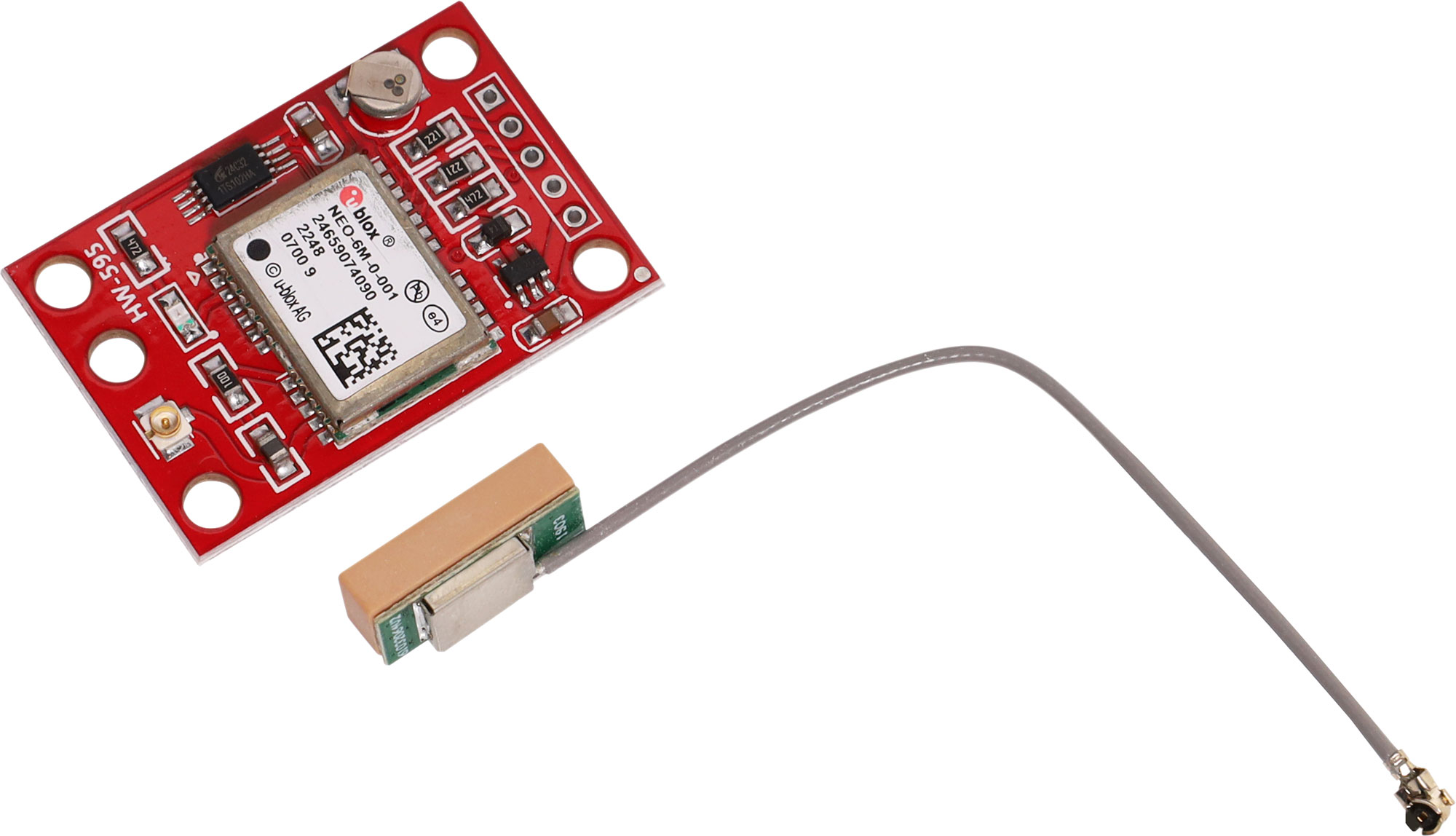

NEO-6M GPS Breakout Module with Antenna

Be the first to review this product
The NEO-6 module is a stand-alone GPS receiver featuring a high performance u-blox 6 positioning engine.
SKU: Z6318
$16.32
Per ea
Quantity Price
ea $16.32
2+ $14.09
4+ $13.18

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The NEO-6 module is a stand-alone GPS receiver featuring a high performance u-blox 6 positioning engine. This flexible and cost effective receiver offers numerous connectivity options in a compact package. The compact architecture and power and memory options makes this NEO-6 module ideal for battery operated mobile devices with very strict cost and space constraints.

Features

  • GPS Breakout Module
  • 2.7V-3.6V Supply
  • Interfaces; UART, USB, SPI, DDC
  • RT Crystal
  • Antenna Supply and supervisor
  • 3 Configuration Pairs
  • 1 Timepulse pair
  • External Interrupt/Wakeup

Specifications

Time to first fix

  • Cold Start (without aiding): 27s
  • Warm Start (without aiding): 27s
  • Hot Start (without aiding): 1s
  • Aided Starts: <3s

Sensitivity

  • Tracking and Navigation: -161 dBm
  • Reacquistion: -160 dBm
  • Cold Start (without aiding): -147 dBm
  • Hot Start: -156 dB

General

  • Receiver type: 50 channels, GPS L1 frequency, C/A code, SBAS: WAAS, EGNOS, MSAS
  • Maximum Navigation update rate: 1Hz
  • Configurable Timepulse frequency range: 0.25Hz to 10MHz
  • Velocity accuracy: 0.1m/s
  • Heading accuracy: 0.5 degrees

Accuracy for Timepulse signal

  • RMS: 30 ns
  • 99%: <60 ns
  • Granularity: 21 ns
  • Compensated: 15 ns
