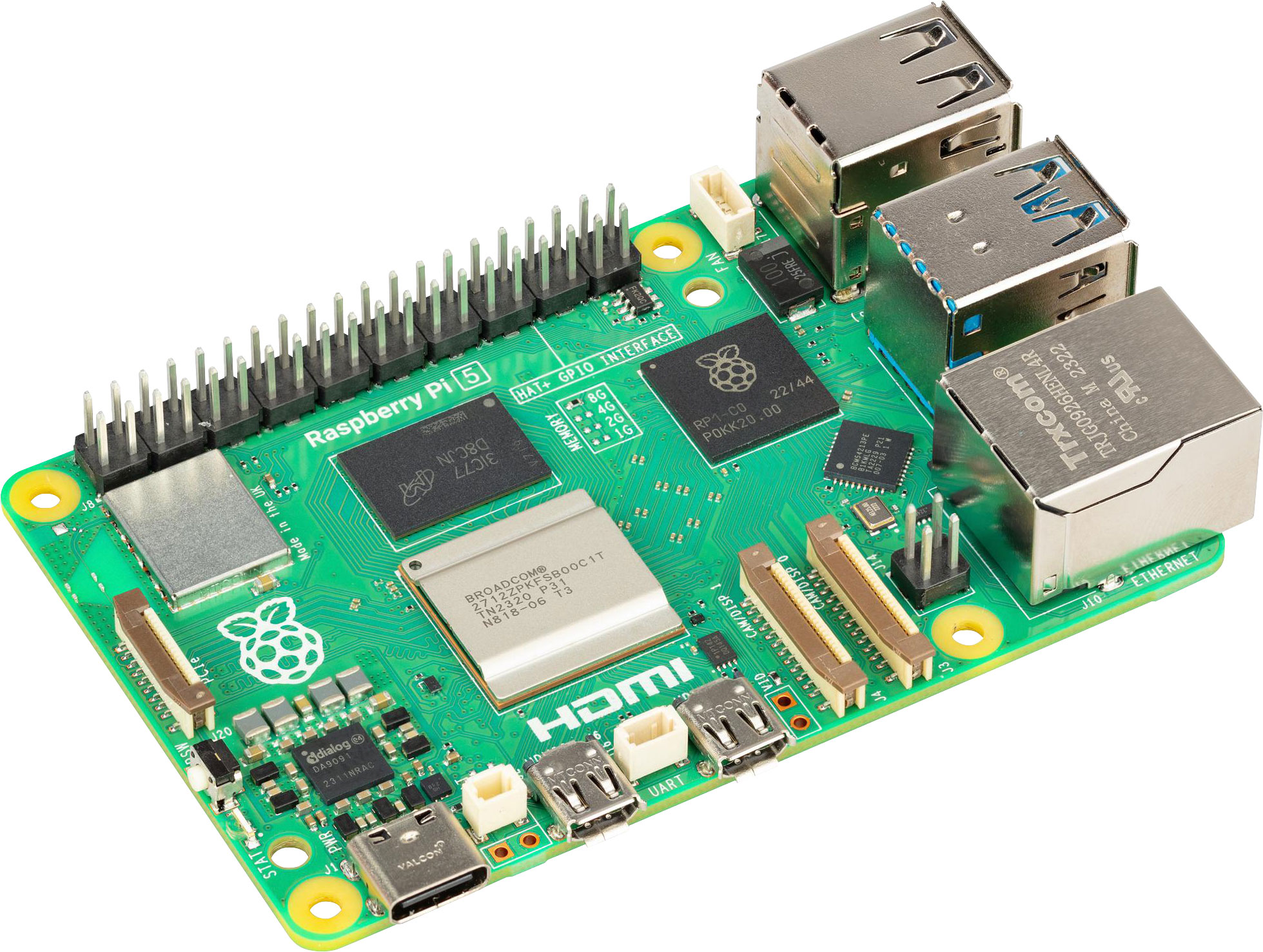

Raspberry Pi 5 Single Board Computer 4GB

Manufacturer: Raspberry Pi
Be the first to review this product
The Raspberry Pi 5 4GB single board computer. The bandwidth speed and performance of the new Raspberry Pi 5 is a step up from earlier models.
SKU: Z6302J
$132.73
Per ea
QuantityPrice
ea$132.73

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The Raspberry Pi 5 is the latest product from Raspberry Pi. The speed and performance of the new Raspberry Pi 5 is a step up from earlier models. Whether you''re editing documents, browsing the web with a bunch of tabs open, juggling spreadsheets or drafting a presentation, you''ll find the experience smooth and very recognisable — but on a smaller, more energy-efficient and much more cost-effective machine. With the new model you can run two monitors at once in 4K. With the added feature of no fans the Raspberry Pi 5 is built using the RP1 I/O controller, a package containing silicon designed in-house at Raspberry Pi.

Features

  • Broadcom BCM2712 quad-core Arm Cortex A76 processor @ 2.4GHz
  • RAM variants up to 8GB
  • Interchangeable Camera and DSI display connectors
  • Dual 4Kp60
  • Real-time clock
  • Power button
  • UART debug port

Specifications

Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache

  • VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
  • Dual 4Kp60 HDMI® display output with HDR support
  • 4Kp60 HEVC decoder
  • LPDDR4X-4267 SDRAM (4GB)
  • Dual-band 802.11ac Wi-Fi®
  • Bluetooth 5.0 / Bluetooth Low Energy (BLE)
  • microSD card slot, with support for high-speed SDR104 mode
  • 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
  • 2 × USB 2.0 ports
  • Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
  • 2 × 4-lane MIPI camera/display transceivers
  • PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
  • 5V/5A DC power via USB-C, with Power Delivery support
  • Raspberry Pi standard 40-pin header
  • Real-time clock (RTC), powered from external battery
  • Power button



RP1



Raspberry Pi 5 is built using the RP1 I/O controller, a package containing silicon designed in-house at Raspberry Pi.
USB 3 has more total bandwidth, for much faster transfer speeds. Camera and DSI display connectors are interchangeable, so you can have one of each, or two the same.

pic




More than twice as fast and infinitely smoother.



Raspberry Pi 5 features the Broadcom BCM2712 quad-core Arm Cortex A76 processor @ 2.4GHz, making it up to three times faster than the previous generation. With RAM variants up to 8GB, this is the fastest, smoothest Raspberry Pi experience yet.

pic




All aboard the PCI express.



This addition to Raspberry Pi allows you to connect an M.2 SSD to your Raspberry Pi, giving you speedy data transfer and super-fast boot.

pic
